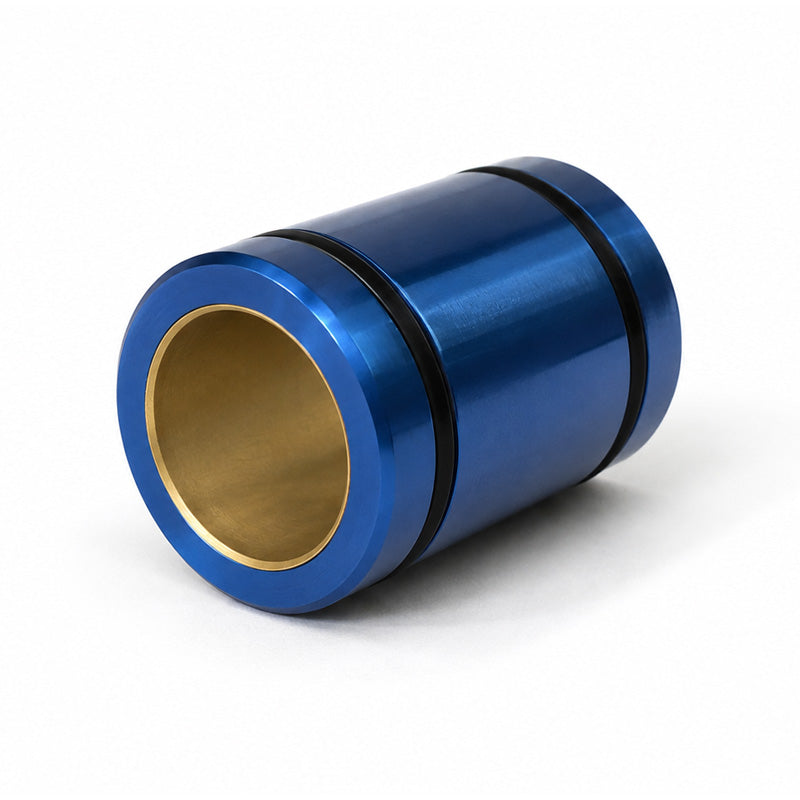

• Simplicity FMTC20 Metric Compact Compensated Thin Wall Linear Plain Bearing with Frelon Gold Liner 20x28x30mm Allow 2-3 Days
1 1

SKU: FMTC20-PBC

Simplicity FMTC20 Metric Compact Compensated Thin Wall Linear Plain Bearing with Frelon Gold Liner 20x28x30mm Allow 2-3 Days

Simplicity FMTC20 Metric Compact Compensated Thin Wall Linear Plain Bearing with Frelon Gold Liner 20x28x30mm Allow 2-3 Days
$49.64 ex VAT
$49.64 ex VAT
Sale Sold out

In stock

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
Brand / Quality:
PBC - High Quality
Inside Diameter:
20mm
Outside Diameter:
28mm
Length:
30mm
Technical
Nominal Size 20mm
Bearing ID A Min 20.096mm
Bearing ID A Max 20.129mm
Outside Diameter B h7 Min 27.979mm
Outside Diameter B h7 Max 28mm
Length C Min 29.619mm
Length C Max 30mm
Concentric Max 0.0254mm
Between O-Ring Grooves J 14mm
O-Ring Grooves Width JA 2mm
O-Ring Grooves Diameter JB 25.5mm
O-Ring Size 25x1.5
O-Ring Part No. 6000032
Effective Surface Area 6CM<sup>2</sup>
Max Static Load Frelon&reg; 12361 N
PV Max 0.7 N/mm<sup>2</sup>
Speed Running Dry 1.52 (m/s)
Speed Running with Lubrication 4.19 (m/s)
