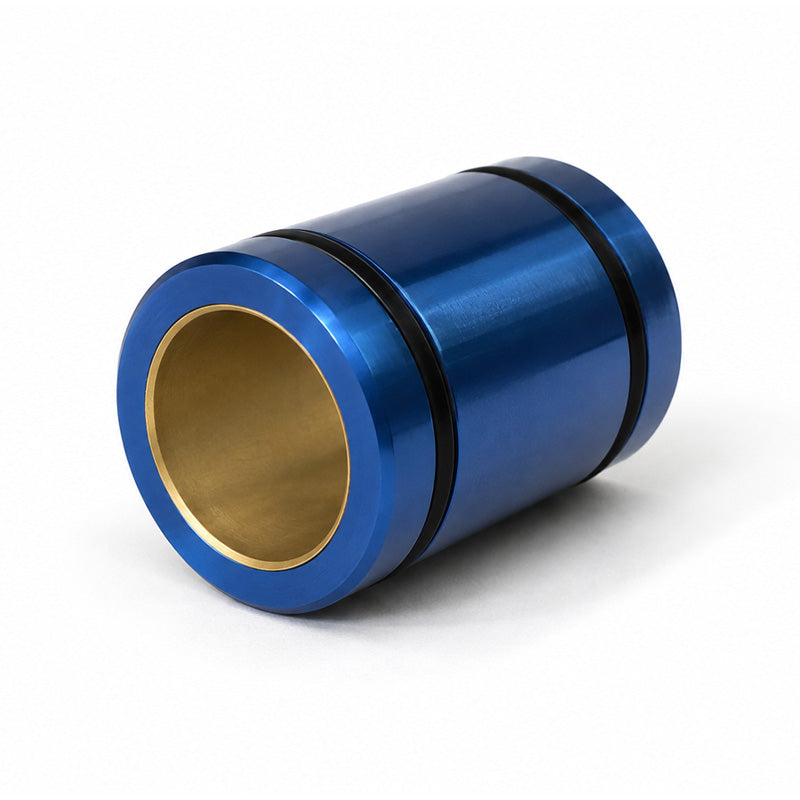

• Simplicity FMTC40 Metric Compact Compensated Thin Wall Linear Plain Bearing with Frelon Gold Liner 40x52x60mm Allow 2-3 Days
1 1

SKU: FMTC40-PBC

Simplicity FMTC40 Metric Compact Compensated Thin Wall Linear Plain Bearing with Frelon Gold Liner 40x52x60mm Allow 2-3 Days

Simplicity FMTC40 Metric Compact Compensated Thin Wall Linear Plain Bearing with Frelon Gold Liner 40x52x60mm Allow 2-3 Days
$140.63 ex VAT
$140.63 ex VAT
Sale Sold out

In stock

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
Brand / Quality:
PBC - High Quality
Inside Diameter:
40mm
Outside Diameter:
52mm
Length:
60mm
Technical
Nominal Size 40mm
Bearing ID A Min 40.127mm
Bearing ID A Max 40.166mm
Outside Diameter B h7 Min 51.97mm
Outside Diameter B h7 Max 52mm
Length C Min 59.619mm
Length C Max 60mm
Concentric Max 0.0254mm
Between O-Ring Grooves J 40mm
O-Ring Grooves Width JA 4.1mm
O-Ring Grooves Diameter JB 46.2mm
O-Ring Size 46x3.5
O-Ring Part No. 6000035
Effective Surface Area 24CM<sup>2</sup>
Max Static Load Frelon&reg; 49442 N
PV Max 0.7 N/mm<sup>2</sup>
Speed Running Dry 1.52 (m/s)
Speed Running with Lubrication 4.19 (m/s)
