• SKF FNL511B Cast Iron Split Three Bolt Flanged Housing
1 1

SKU: FNL511B-SKF

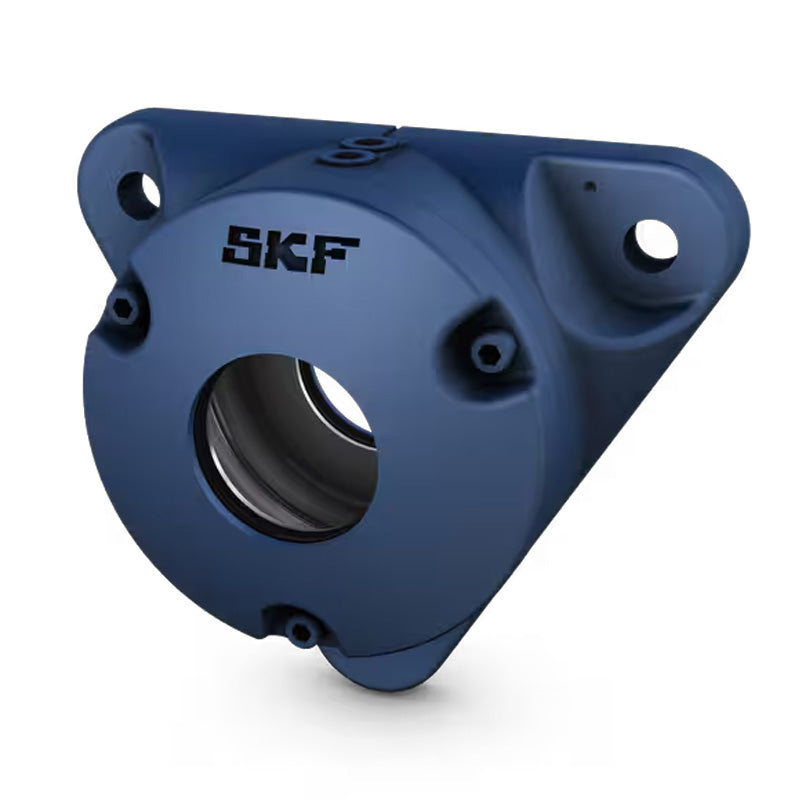

SKF FNL511B Cast Iron Split Three Bolt Flanged Housing

SKF FNL511B Cast Iron Split Three Bolt Flanged Housing
$221.87 ex VAT
$221.87 ex VAT
Sale Sold out

In stock

Price Break
10+ $148.61
19+ $140.26
29+ $138.59
39+ $136.92
49+ $135.25
74+ $133.58
99+ $125.23
199+ $123.56
249+ $121.90
499+ $120.23
999+ $116.89

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
Brand / Quality:
SKF - High Quality
Style:
FNL
Pitch Circle Diameter:
170mm
Belt Pitch Length Approx:
170mm

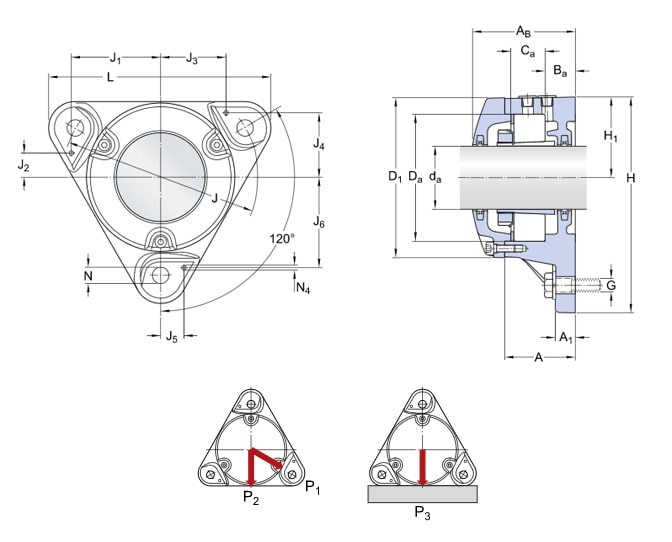

Technical
da 50mm
Ca 27mm
Da 100mm
A 56mm
A1 15mm
AB 82mm
Ba 24mm
D 127mm
H 172.5mm
H1 65mm
J 170mm
L 192mm
N 14mm
J1 77mm
J2 21mm
J3 57mm
J4 56mm
J5 21mm
J6 77mm
N4 max 6mm
P1 110 kN
P2 80 kN
P3 110 kN
Mass 4.3 kg
Cover bolt, size 3 x M 6x20
Cover bolt, rec. tightening torque 10 Nm
Appropriate attachment bolt, size G 12mm
Appropriate attachment bolt, rec. tightening torque 80 Nm
Initial grease fill, 20% 40 g
Initial grease fill, 40% 60 g
