SKU: FP-06S-MB

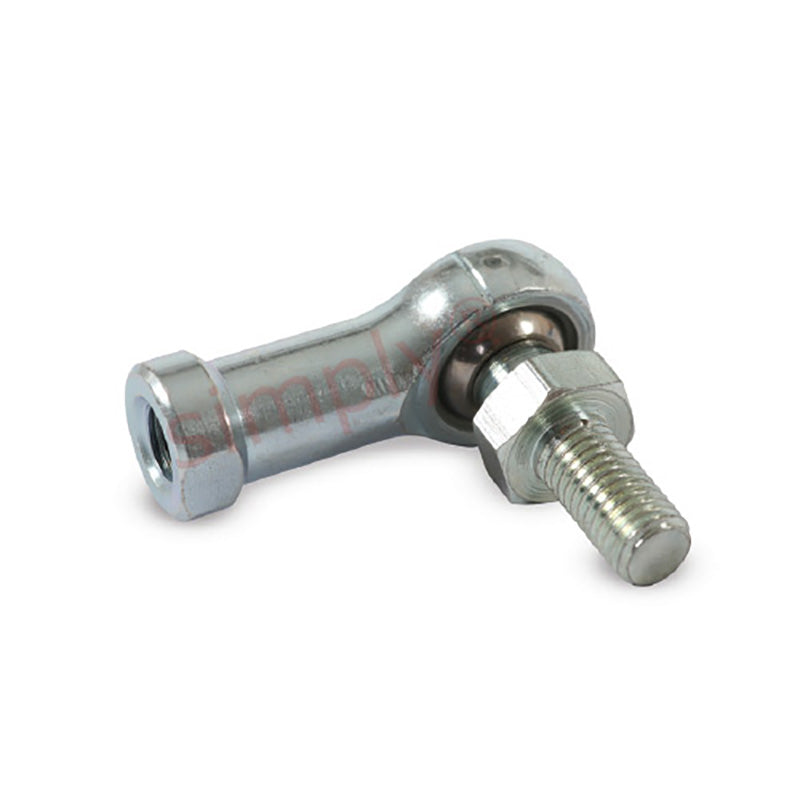

Branded FP-06S Right Hand Imperial Steel / Nylon Lined Maintenance Free Studded Female Rod End 3/8 UNF Thread
- Regular price
- $22.25 ex VAT
- Sale price
- $22.25
- Regular price
-
In stock
Quantity Price Breaks
10
$19.80
19
$18.69
29
$18.47
39
$18.25
49
$18.02
74
$17.80
99
$16.69
199
$16.47
249
$16.24
499
$16.02
999
$15.58
SKU:
FP-06S-MB
Branded FP-06S Right Hand Imperial Steel / Nylon Lined Maintenance Free Studded Female Rod End 3/8 UNF Thread
- Regular price
- $22.25 ex VAT
- Sale price
- $22.25
- Regular price
-
Description
|
FPS Studded Series Maintenance Free Female Rod Ends: The FPS Studded series are a standard range of self-lubricating general purpose female rod ends, suitable for light to medium heavy industrial/mechanical load applications requiring low friction and good wear resistance, available in both metric and imperial bore and thread sizes. They have excellent moisture resistance and require no maintenance and have a wide operating temperature range -30c to +170c. Stud, Steel 230M07PB, zinc plated white and blue passivate (silver/clear). Benefits: Low friction, Self-lubricating, good wear resistance, excellent moisture resistance, no maintenance |
Technical
| Stud size | = | 3/8 UNF |
| Thread | = | 3/8 UNF |
| A | = | 0.906 inch |
| B | = | 0.562 inch |
| C | = | 0.812 inch |
| K | = | 0.5mm |
| Static load | = | 4240 N |
