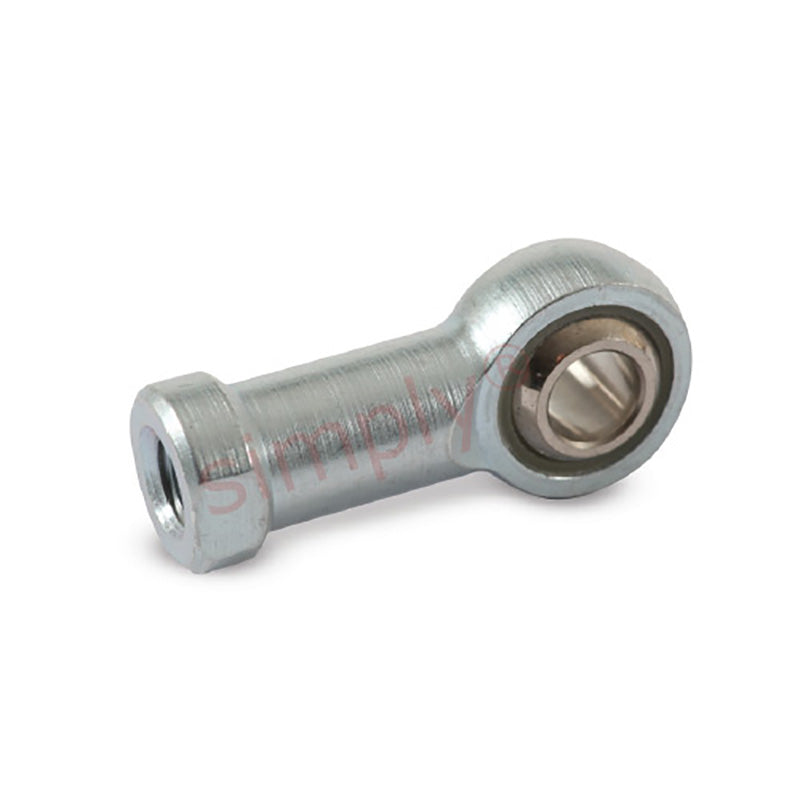

• Branded FP-M14 Right Hand Metric Stainless Steel / Nylon Lined Maintenance Free Plain Female Rod End M14x2 Thread - Allow 7-10 Days
1 1

SKU: FP-M14 SS-MB

Branded FP-M14 Right Hand Metric Stainless Steel / Nylon Lined Maintenance Free Plain Female Rod End M14x2 Thread - Allow 7-10 Days

Branded FP-M14 Right Hand Metric Stainless Steel / Nylon Lined Maintenance Free Plain Female Rod End M14x2 Thread - Allow 7-10 Days
$51.47 ex VAT
$51.47 ex VAT
Sale Sold out

In stock

Price Break
10+ $34.48
19+ $32.55
29+ $32.16
39+ $31.77
49+ $31.38
74+ $31.00
99+ $29.06
199+ $28.67
249+ $28.28
499+ $27.90
999+ $27.12

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
FP Stainless Steel Series Maintenance Free Female Rod Ends: The stainless steel FP series are a standard range of self-lubricating general purpose female rod ends, suitable for light to medium heavy industrial/mechanical load applications requiring low friction and good wear resistance, available in both metric and imperial bore and thread sizes. They have excellent moisture resistance and require no maintenance and have a wide operating temperature range -30c to +170c
Benefits: Low friction, Self-lubricating, good wear resistance, excellent moisture resistance, no maintenance
Note: These bearings will eventually corrode in a marine environment and it is recommended to completely cover with grease or similar protection where practical. Due to the material requirements of these bearings to have a hard-wearing construction, they will be made of a harder form of Stainless Steel, such as 440 or similar, which will be attracted by magnets. Quotations for non-magnetic versions are available upon request.
Brand / Quality:
Major Brand - High Quality
Thread Size:
M14x2
Thread M / F:
Female
Thread Direction:
Right Hand
Inside Diameter:
14mm
Material:
Nylon Lined
Technical
Bore size 14mm
Thread M14x2
W 19mm
H 13.5mm
D 34mm
L1 57mm
L2 27mm
O 16.8mm
AF 22mm
Static load 28950 N
