SKU: FPL-10-8S-DUN

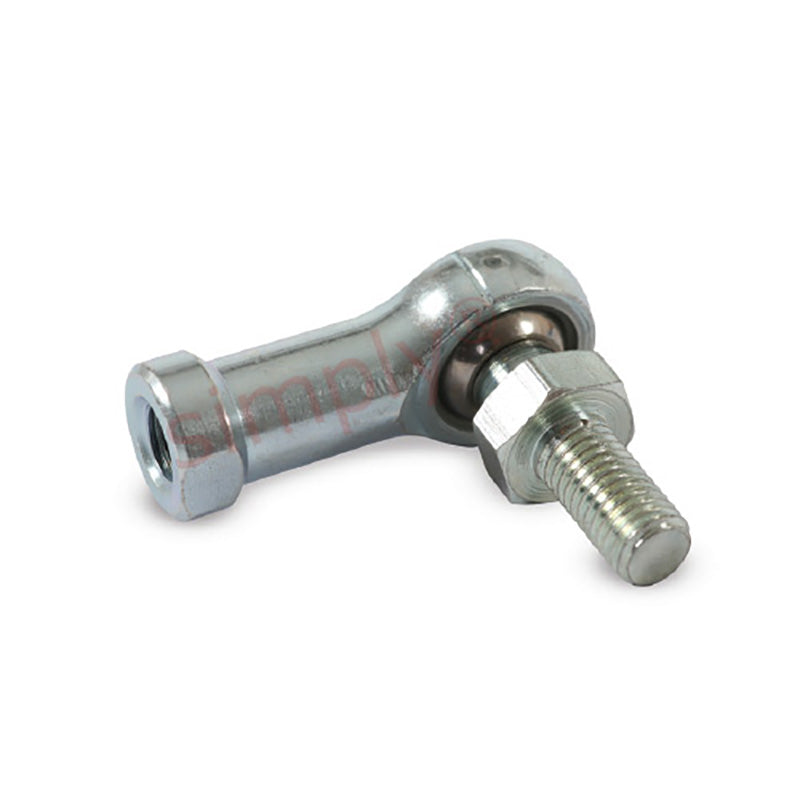

Dunlop FPL-10-8S Left Hand Imperial Steel / Nylon Lined Maintenance Free Studded Female Rod End 5/8 UNF Thread - Allow 7-10 Days
Dunlop FPL-10-8S Left Hand Imperial Steel / Nylon Lined Maintenance Free Studded Female Rod End 5/8 UNF Thread - Allow 7-10 Days
Regular price
$63.75
ex VAT
Regular price
Sale price
$63.75
ex VAT
In stock
Description
Description
|
FPS Studded Series Maintenance Free Female Rod Ends: The FPS Studded series are a standard range of self-lubricating general purpose female rod ends, suitable for light to medium heavy industrial/mechanical load applications requiring low friction and good wear resistance, available in both metric and imperial bore and thread sizes. They have excellent moisture resistance and require no maintenance and have a wide operating temperature range -30c to +170c. Stud, Steel 230M07PB, zinc plated white and blue passivate (silver/clear). Benefits: Low friction, Self-lubricating, good wear resistance, excellent moisture resistance, no maintenance |
- Brand / Quality:
- Dunlop - High Quality
- Thread Size:
- 5/8 UNF
- Thread M / F:
- Female
- Thread Direction:
- Left Hand
- Material:
- Nylon Lined
Technical
Technical
| Stud size | M14 |
|---|---|
| Thread | 5/8 UNF |
| A | 1.125 inch |
| B | 1 inch |
| C | 1 inch |
| K | 0.75 inch |
| Static load | 7200 N |
