SKU: FPL-M08 SS-MB

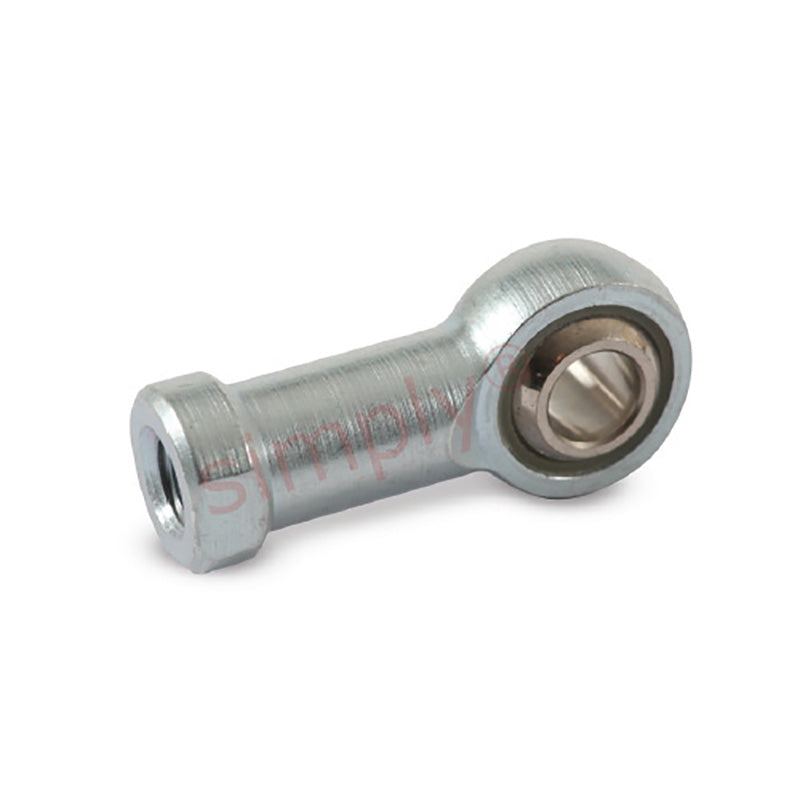

Branded FPL-M08 Left Hand Metric Stainless Steel / Nylon Lined Maintenance Free Plain Female Rod End M8x1.25 Thread

Name: Branded FPL-M08 Left Hand Metric Stainless Steel / Nylon Lined Maintenance Free Plain Female Rod End M8x1.25 Thread
Brand: Major Brand
SKU: FPL-M08 SS-MB
Price: 29.32 USD
Availability: InStock

$29.32 ex VAT

Sale Sold out

In stock

Price Break

10+ $19.64

19+ $18.54

29+ $18.32

39+ $18.10

49+ $17.88

74+ $17.66

99+ $16.55

199+ $16.33

249+ $16.11

499+ $15.89

999+ $15.45

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More

Description

FP Stainless Steel Series Maintenance Free Female Rod Ends: The stainless steel FP series are a standard range of self-lubricating general purpose female rod ends, suitable for light to medium heavy industrial/mechanical load applications requiring low friction and good wear resistance, available in both metric and imperial bore and thread sizes. They have excellent moisture resistance and require no maintenance and have a wide operating temperature range -30c to +170c
Benefits: Low friction, Self-lubricating, good wear resistance, excellent moisture resistance, no maintenance
Note: These bearings will eventually corrode in a marine environment and it is recommended to completely cover with grease or similar protection where practical. Due to the material requirements of these bearings to have a hard-wearing construction, they will be made of a harder form of Stainless Steel, such as 440 or similar, which will be attracted by magnets. Quotations for non-magnetic versions are available upon request.

Brand / Quality:: Major Brand - High Quality
Thread Size:: M8x1.25
Thread M / F:: Female
Thread Direction:: Left Hand
Inside Diameter:: 8mm
Material:: Nylon Lined

Technical

Bore size	8mm
Thread	M8x1.25
W	12mm
H	9mm
D	22mm
L1	36mm
L2	17mm
O	10.4mm
AF	14mm
Static load	12775 N
