SKU: FR.4.2RS

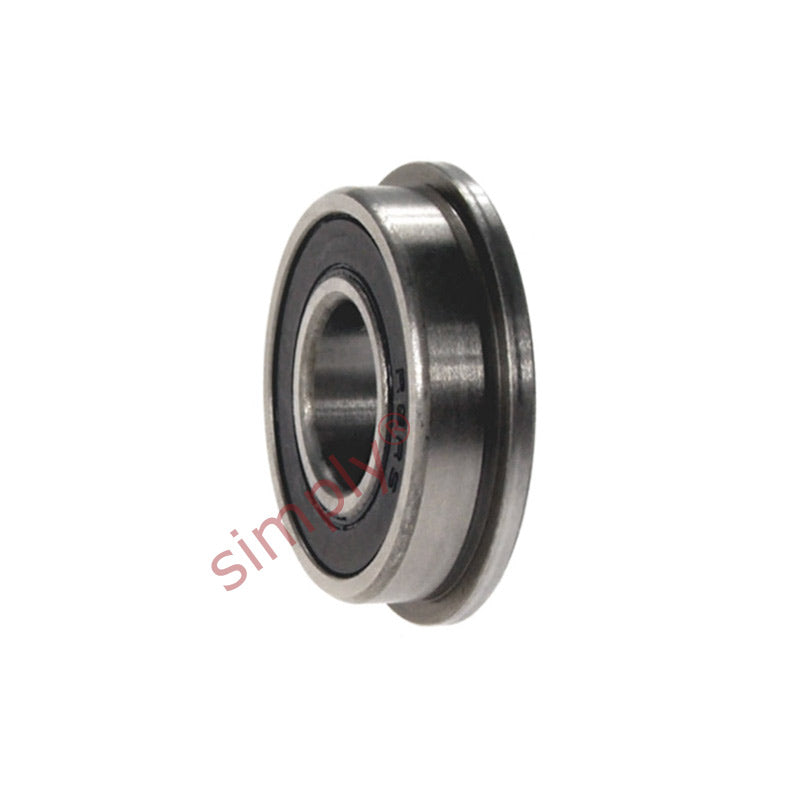

FR42RS Budget Rubber Sealed Flanged Deep Groove Ball Bearing 1/4x5/8x0.196 inch
FR42RS Budget Rubber Sealed Flanged Deep Groove Ball Bearing 1/4x5/8x0.196 inch
Regular price
$4.48
ex VAT
Regular price
Sale price
$4.48
ex VAT
In stock
Price Break
5+
$3.00
9+
$2.83
19+
$2.80
24+
$2.77
49+
$2.73
74+
$2.70
99+
$2.53
199+
$2.50
249+
$2.46
499+
$2.43
999+
$2.36
Quantity
Couldn't load pickup availability
Description
Description
Rubber Sealed Flanged Deep Groove Ball Bearings: Manufactured to the same principal sizes as standard bearings with rubber seals these have an additional flange to allow fitting into housings flush against the shoulder of the flange. They are often used on steel tracks as guides and supports. The seals serve to offer protection to prevent ingress of debris, moisture and dust whilst retaining the grease within the bearing |
- Brand / Quality:
- EU Budget - Economy Quality
- Inside Diameter:
- 6.35mm = 0.25 (1/4) inch
- Outside Diameter:
- 15.88mm = 0.625 (5/8) inch
- Width:
- 4.98mm = 0.196 inch
- Seals / Shields:
- Rubber Sealed
- Clearance:
- * Standard
Technical
Technical
| Inside diameter d | 1/4 inch |
|---|---|
| Outside diameter D | 5/8 inch |
| Bearing width B | 0.196 inch |
| Flange diameter P | 0.69 inch |
| Flange width w | 0.042 inch |
