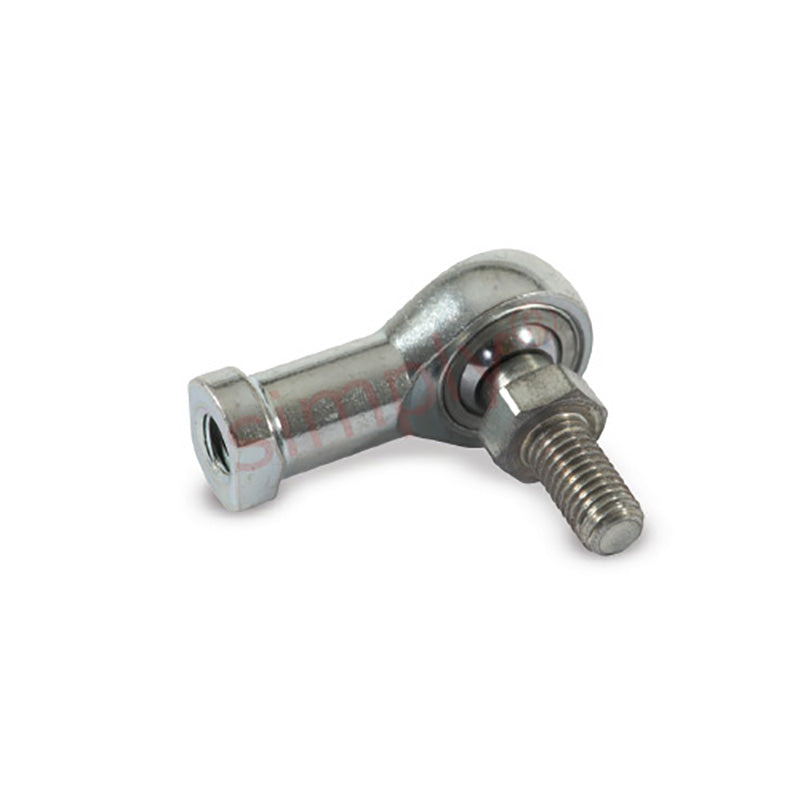

Branded FS-05S Right Hand Imperial Steel / PTFE Lined Maintenance Free Studded Female Rod End 5/16 UNF Thread - Allow 7-10 Days

SKU: FS-05S-MB

Branded FS-05S Right Hand Imperial Steel / PTFE Lined Maintenance Free Studded Female Rod End 5/16 UNF Thread - Allow 7-10 Days

$32.26 ex VAT
$32.26
ex VAT
Equivalent to: PHS6+STUD
Not in stock

Quantity Price Breaks

10 $28.71
19 $27.10
29 $26.78
39 $26.45
49 $26.13
74 $25.81
99 $24.20
199 $23.87
249 $23.55
499 $23.23
999 $22.58
Return policy
90-Days Free Returns
Learn More
Low cost shipping
International Delivery
Learn More
Branded FS-05S Right Hand Imperial Steel / PTFE Lined Maintenance Free Studded Female Rod End 5/16 UNF Thread - Allow 7-10 Days
SKU: FS-05S-MB

Branded FS-05S Right Hand Imperial Steel / PTFE Lined Maintenance Free Studded Female Rod End 5/16 UNF Thread - Allow 7-10 Days

$32.26 ex VAT
$32.26
ex VAT

Description

FSS Studded Maintenance Free Rod Ends With Female Thread: The FSS studded series are a steel on steel range of female rod ends incorporating a high strength PTFE bronze mesh between the ball and the liner material, suitable for high shock loads and medium to heavy mechanical load applications requiring low friction, they do not require maintenance. Temperature range -200c to +260c. Stud, 230M07PB plated white/blue passivate (silver/clear).
Benefits: High shock loads, extended wear life, no maintenance

Technical

Stud size = 5/16 UNF
Thread = 5/16 UNF
A = 0.687 inch
B = 0.547 inch
C = 0.594 inch
K = 0.437mm
Static load = 3190 N
