SKU: FS-M06 SS-MB

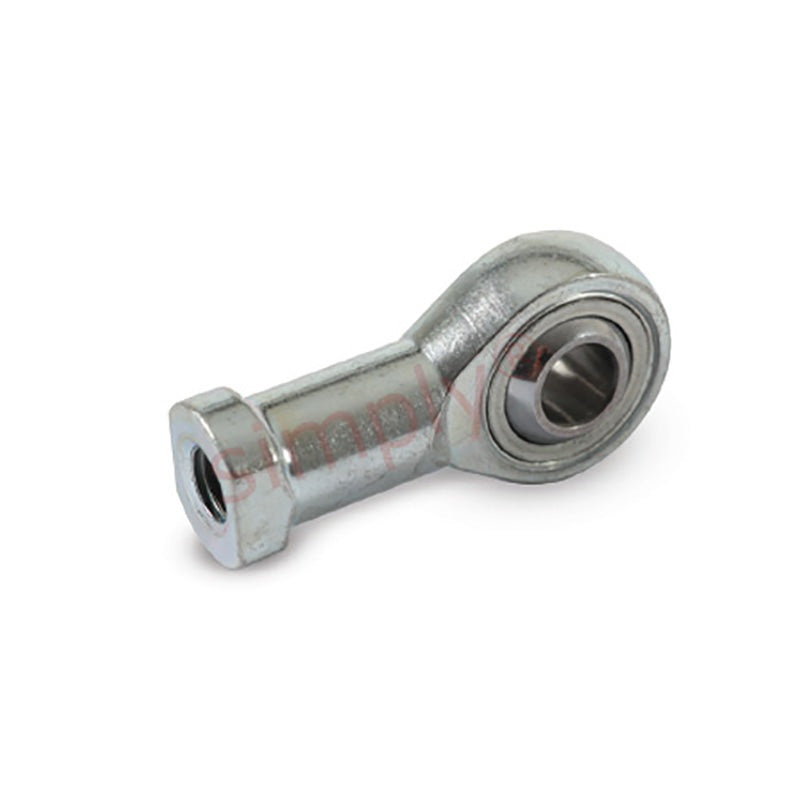

Branded FS-M06 Right Hand Metric Stainless Steel / PTFE Lined Maintenance Free Plain Female Rod End M6x1 Thread

Name: Branded FS-M06 Right Hand Metric Stainless Steel / PTFE Lined Maintenance Free Plain Female Rod End M6x1 Thread
Brand: Major Brand
SKU: FS-M06 SS-MB
Price: 41.44 USD
Availability: InStock

$41.44 ex VAT

Sale Sold out

Equivalent to: SSPHS6

In stock

Price Break

10+ $27.76

19+ $26.20

29+ $25.89

39+ $25.57

49+ $25.26

74+ $24.95

99+ $23.39

199+ $23.08

249+ $22.77

499+ $22.46

999+ $21.83

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More

Description

FS Stainless Steel Maintenance Free Rod Ends With Female Thread: The FS stainless steel series are a steel on steel range of female rod ends incorporating a high strength PTFE bronze mesh between the ball and the liner material, suitable for high shock loads and medium to heavy mechanical load applications requiring low friction, they do not require maintenance. Temperature range -200c to +260c
Benefits: High shock loads, extended wear life, no maintenance
Note: These bearings will eventually corrode in a marine environment and it is recommended to completely cover with grease or similar protection where practical. Due to the material requirements of these bearings to have a hard-wearing construction, they will be made of a harder form of Stainless Steel, such as 440 or similar, which will be attracted by magnets. Quotations for non-magnetic versions are available upon request.

Brand / Quality:: Major Brand - High Quality
Thread Size:: M6x1
Thread M / F:: Female
Thread Direction:: Right Hand
Inside Diameter:: 6mm
Material:: PTFE Lined

Technical

Bore size	6mm
Thread	M6x1
W	9mm
H	6.75mm
D	20mm
L1	30mm
L2	12mm
O	8.9mm
AF	11mm
Static load	6000 N
