SKU: FS-M06S-MB

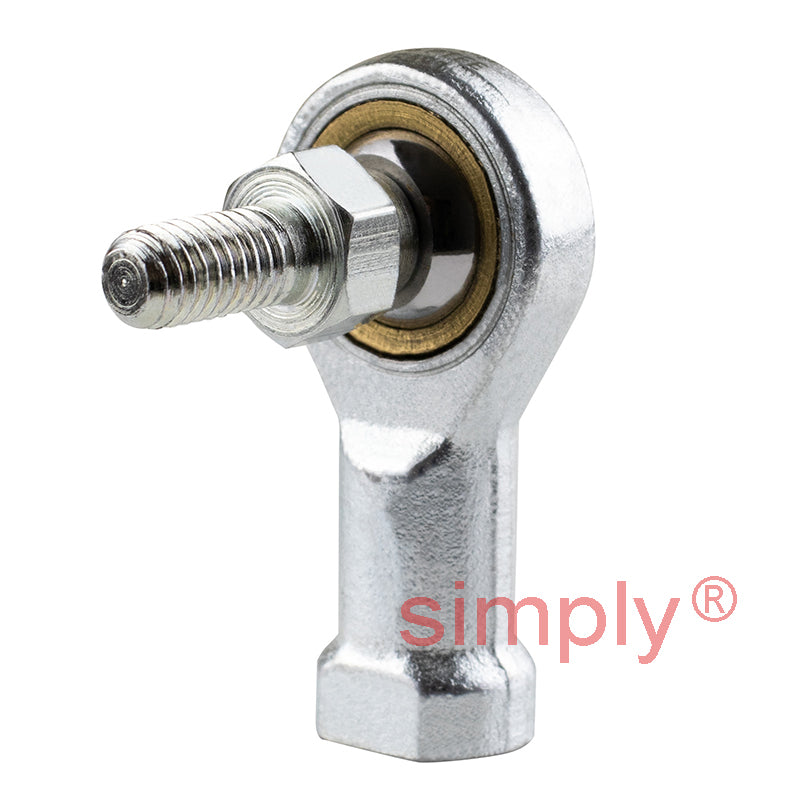

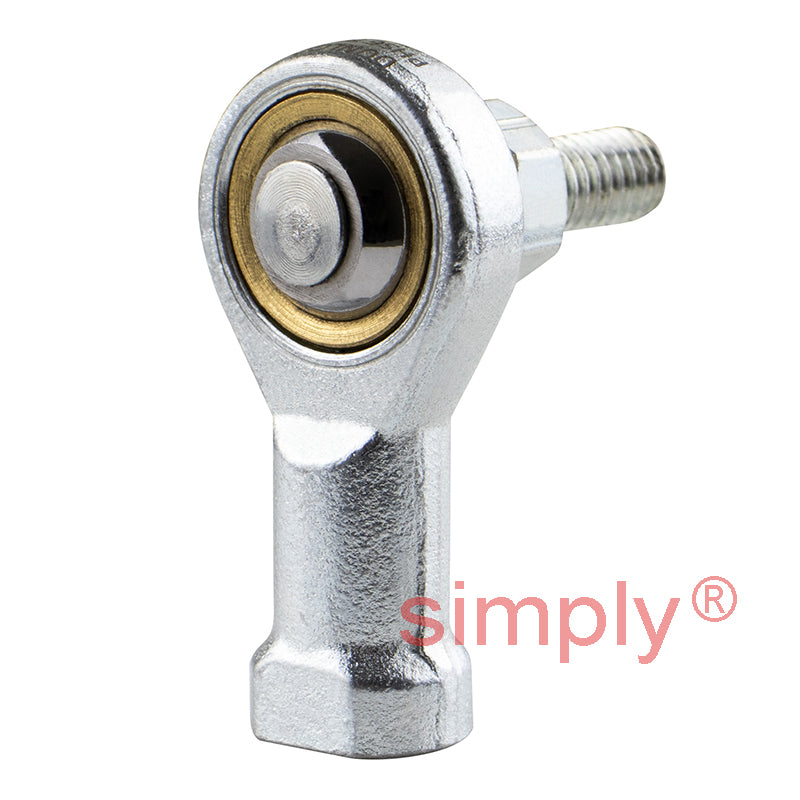

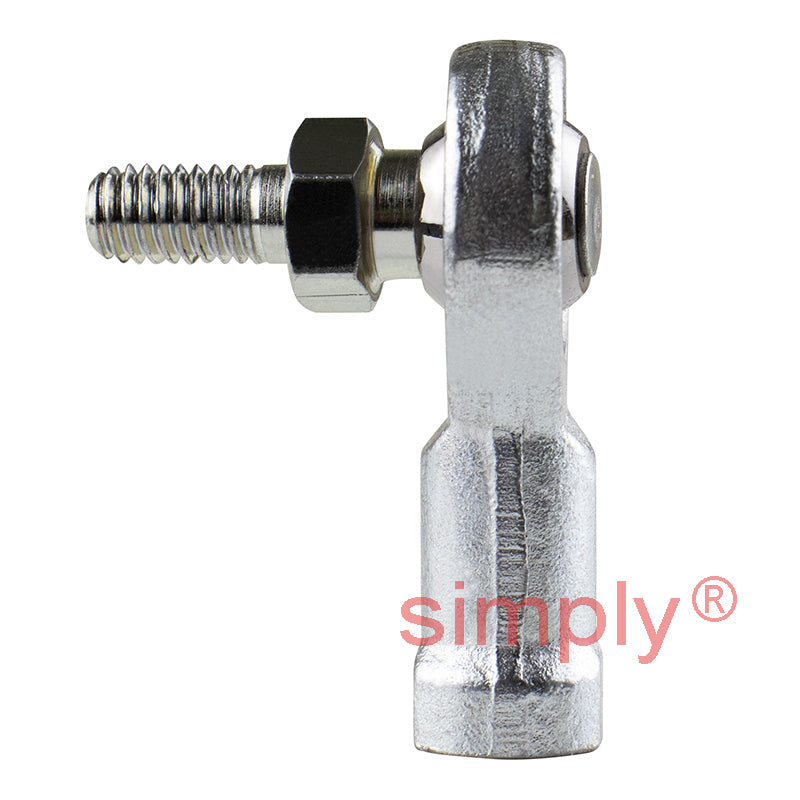

Branded FS-M06S Right Hand Metric Steel / PTFE Lined Maintenance Free Studded Female Rod End M6x1 Thread
- Regular price
- $22.25 ex VAT
- Sale price
- $22.25
- Regular price
-
In stock
Quantity Price Breaks
10
$19.80
19
$18.69
29
$18.47
39
$18.25
49
$18.02
74
$17.80
99
$16.69
199
$16.47
249
$16.24
499
$16.02
999
$15.58
SKU:
FS-M06S-MB
Branded FS-M06S Right Hand Metric Steel / PTFE Lined Maintenance Free Studded Female Rod End M6x1 Thread
- Regular price
- $22.25 ex VAT
- Sale price
- $22.25
- Regular price
-
Description
|
FSS Studded Maintenance Free Rod Ends With Female Thread: The FSS studded series are a steel on steel range of female rod ends incorporating a high strength PTFE bronze mesh between the ball and the liner material, suitable for high shock loads and medium to heavy mechanical load applications requiring low friction, they do not require maintenance. Temperature range -200c to +260c. Stud, 230M07PB plated white/blue passivate (silver/clear). Outer race may feature a bronze or silver-coloured finish. Benefits: High shock loads, extended wear life, no maintenance. |
Technical
| Stud size | = | M6 |
| Thread | = | M6x1 |
| A | = | 12mm |
| B | = | 12mm |
| C | = | 10mm |
| K | = | 10mm |
| Static load | = | 1930 N |
