SKU: FSAFD2515/65-SKF

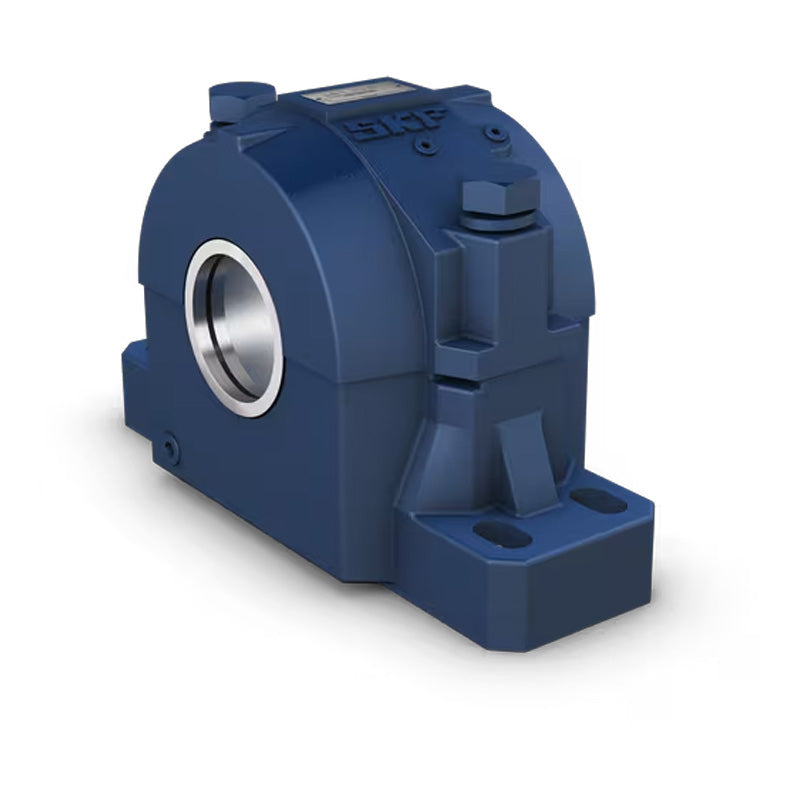

SKF FSAFD2515/65 Ductile Iron Split Pillow Block Housing for Bearings on an Adapter Sleeve Complete Assembly
SKF FSAFD2515/65 Ductile Iron Split Pillow Block Housing for Bearings on an Adapter Sleeve Complete Assembly
Out of stock
Share this product
Description
Description
- Brand / Quality:
- SKF - High Quality
- Inside Diameter:
- 65mm
Technical
Technical
| Housing | FSAFD515M |
|---|---|
| Triple Ring Seal | LOR611 |
| Bearing | 2215K |
| Adaptor Sleeve | H315 |
| Fixing Rings (2 required) | FRB5/130 |
| da | 65mm |
| A | 117mm = 4-5/8 inch |
| A1 | 79mm = 3-1/8 inch |
| A2 | 121mm = 4-3/4 inch |
| A3 | 197mm = 7-3/4 inch |
| H | 162mm = 6-3/8 inch |
| H1 | 82.55mm = 3-1/4 inch |
| H2 | 29mm = 1-1/8 inch |
| H3 | 29mm = 1-1/8 inch |
| L | 286mm = 11-1/4 inch |
| J max | 244mm = 9-5/8 inch |
| J min | 219mm = 8-5/8 inch |
| J1 | 48mm = 1-7/8 inch |
| Bolts (required) | (4) 12mm = 1/2 inch |
| End plug | EPR7 |
| Weight | 12.8 kg |
