SKU: FSAFD2517/2-15/16-SKF

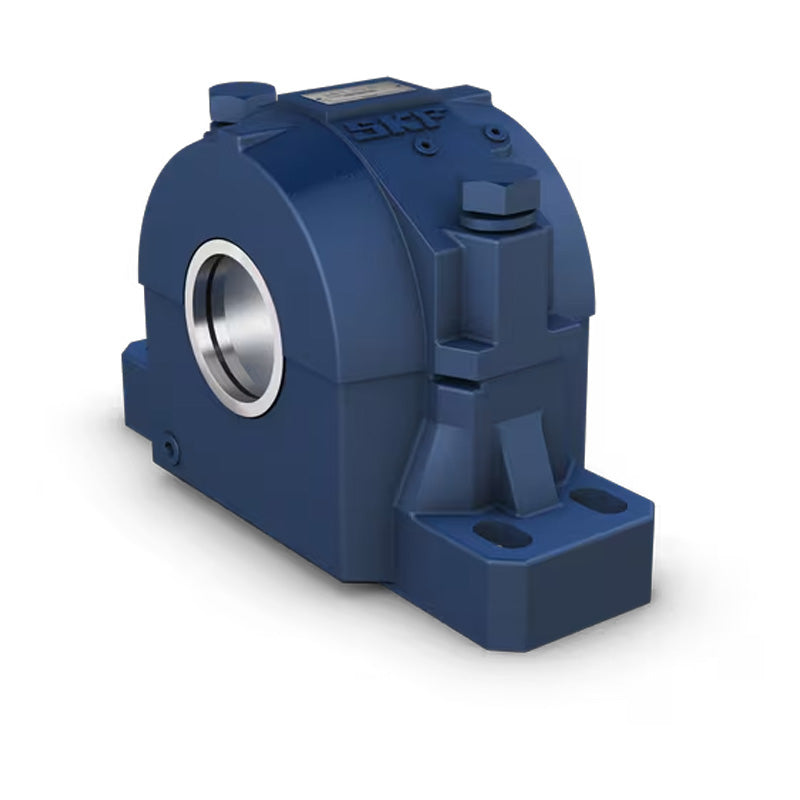

SKF FSAFD2517/2-15/16 Ductile Iron Split Pillow Block Housing for Bearings on an Adapter Sleeve Complete Assembly
SKF FSAFD2517/2-15/16 Ductile Iron Split Pillow Block Housing for Bearings on an Adapter Sleeve Complete Assembly
Out of stock
Description
Description
- Brand / Quality:
- SKF - High Quality
- Inside Diameter:
- 74.61mm = 2.937 (2-15/16) inch
Technical
Technical
| Housing | FSAFD517 |
|---|---|
| Triple Ring Seal | LOR53 |
| Taconite Service Seal | TER517/2-15/16 |
| Bearing | 2217K |
| Adaptor Sleeve | HA317 |
| Fixing Rings (2 required) | FRB5/150 |
| da | 2-15/16 inch |
| A | 4-13/16 inch = 122mm |
| A1 | 3-1/2 inch = 89mm |
| A2 | 5 inch = 127mm |
| A3 | 8 inch = 203mm |
| H | 7-5/16 inch = 186mm |
| H1 | 3-3/4 inch = 95.25mm |
| H2 | 1-1/4 inch = 32mm |
| H3 | 1-3/8 inch = 35mm |
| L | 13 inch = 330mm |
| J max | 11 inch = 279mm |
| J min | 9-7/8 inch = 251mm |
| J1 | 2-1/8 inch = 54mm |
| Bolts (required) G | (4) 5/8 inch = 16mm |
| End Plug | EPR9 |
| Weight | 18.6 kg |
