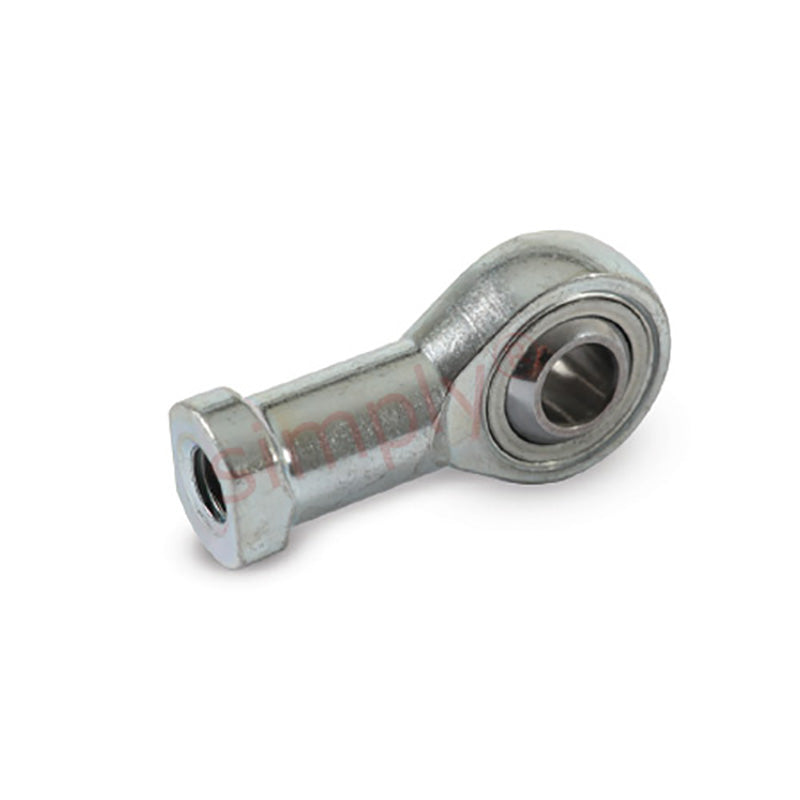

• Branded FSL-10 Left Hand Imperial Steel / PTFE Lined Maintenance Free Plain Female Rod End 5/8 UNF Thread - Allow 7-10 Days
1 1

SKU: FSL-10-MB

Branded FSL-10 Left Hand Imperial Steel / PTFE Lined Maintenance Free Plain Female Rod End 5/8 UNF Thread - Allow 7-10 Days

Branded FSL-10 Left Hand Imperial Steel / PTFE Lined Maintenance Free Plain Female Rod End 5/8 UNF Thread - Allow 7-10 Days
$41.44 ex VAT
$41.44 ex VAT
Sale Sold out

In stock

Price Break
10+ $27.76
19+ $26.20
29+ $25.89
39+ $25.57
49+ $25.26
74+ $24.95
99+ $23.39
199+ $23.08
249+ $22.77
499+ $22.46
999+ $21.83

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
FS Maintenance Free Rod Ends With Female Thread: The FS series are a steel on steel range of female rod ends incorporating a high strength PTFE bronze mesh between the ball and the liner material, suitable for high shock loads and medium to heavy mechanical load applications requiring low friction, they do not require maintenance. Temperature range -200c to +260c
Benefits: High shock loads, extended wear life, no maintenance
Brand / Quality:
Major Brand - High Quality
Thread Size:
5/8 UNF
Thread M / F:
Female
Thread Direction:
Left Hand
Inside Diameter:
15.88mm = 0.625 (5/8) inch
Material:
PTFE Lined
Technical
Bore size 5/8 inch
Thread 5/8 UNF
W 0.75 inch
H 0.562 inch
D 1.625 inch
L1 2.5 inch
L2 1.5 inch
O 21.3 inch
AF 0.875 inch
Static load 32100 N
