SKU: FY1.1/16TF-SKF

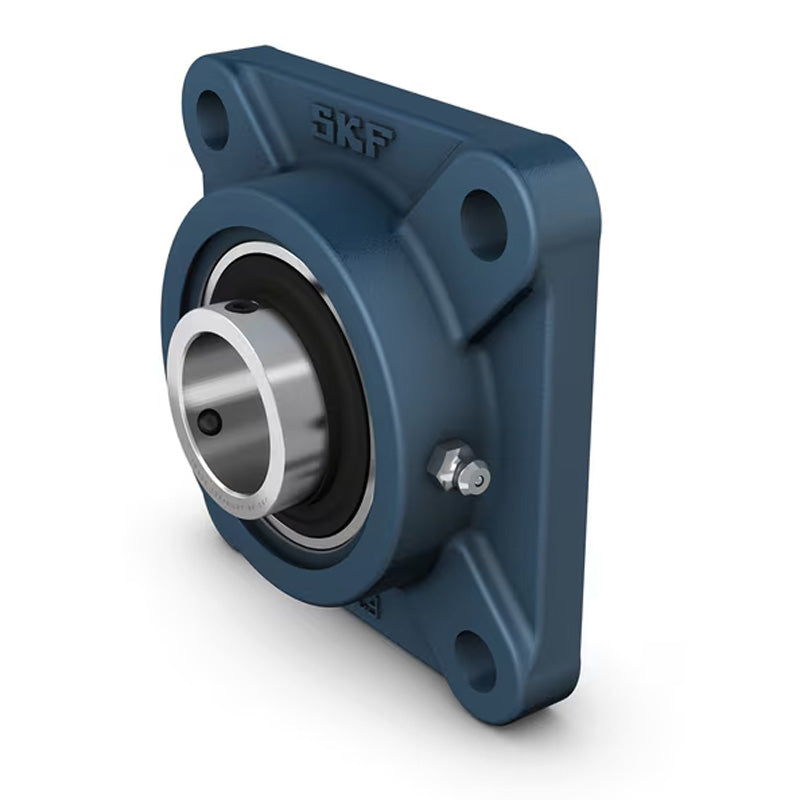

SKF FY1-1/16TF Square Cast Housing with Grub Screw 1-1/16 inch Insert
SKF FY1-1/16TF Square Cast Housing with Grub Screw 1-1/16 inch Insert
Out of stock
Description
Description
|
SKF Square Flanged Y-bearing Units with Cast Housing: These units have a square flange and four holes for attachment bolts. A grease fitting in the housing allows the unit to be re-lubricated. This makes them especially suitable for bearing arrangements that operate under high levels of contamination, high speeds, high temperatures or relatively heavy loads. Benefits: Grease fitting allows re-lubrication |
- Brand / Quality:
- SKF - High Quality
- Inside Diameter:
- 26.99mm = 1.063 (1-1/16) inch
- Style:
- FY
- Bolt Hole Centres:
- 82.5mm
Technical
Technical
| d | 1-1/16 inch |
|---|---|
| A1 | 32.5mm |
| A2 | 13mm |
| B | 38.1mm |
| J | 82.5mm |
| L | 108mm |
| G | 10mm |
| s1 | 22.2mm |
| T | 42.2mm |
| Static load Cr | 11.2 kN |
| Dynamic load Cor | 19.5 kN |
| Fatigue load limit | 0.475 kN |
| Limiting speed | 6300 rpm |
| Weight | 1.1 kg |
| Housing | Insert |
