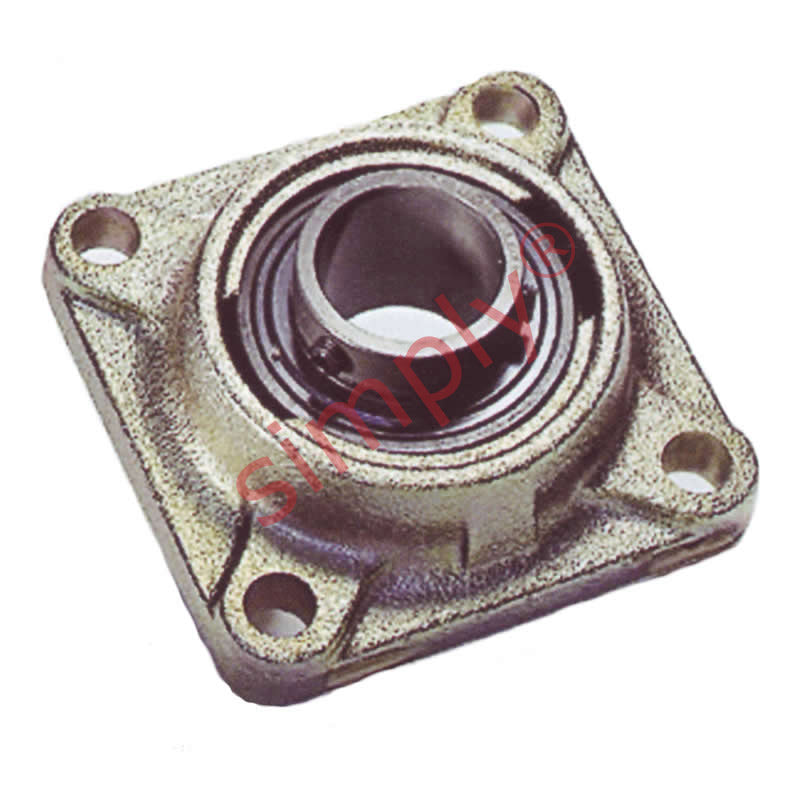

• SKF FY1-1/2TF/VA228 Y Bearing Four Bolt Square High Temperature Flange Unit Housing with Graphite Cage Insert for Imperial Shaft 1-1/2inch
1 1

SKU: FY1.1/2TF/VA228-SKF

SKF FY1-1/2TF/VA228 Y Bearing Four Bolt Square High Temperature Flange Unit Housing with Graphite Cage Insert for Imperial Shaft 1-1/2inch

SKF FY1-1/2TF/VA228 Y Bearing Four Bolt Square High Temperature Flange Unit Housing with Graphite Cage Insert for Imperial Shaft 1-1/2inch
$367.36 ex VAT
$367.36 ex VAT
Sale Sold out

In stock

Price Break
10+ $246.07
19+ $232.24
29+ $229.48
39+ $226.72
49+ $223.95
74+ $221.19
99+ $207.36
199+ $204.60
249+ $201.83
499+ $199.07
999+ $193.54

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
SKF High Temperature Housings and Bearing Inserts: VA228 have a grey cast iron housing and have a coronet type graphite cages, they are lubricated with a polyalkylene glycol/graphite mixture and can be used at temperatures from -50 deg to +350 deg Celsius, at prolonged use over 200 deg Celsius dry lubricant pertains. All versions are characterised by their BLACK PHOSPHATED COATING on the inserts. They have a max rotational speed of 100 rpm
Benefits:High temp tolerance from -50 to +350 deg Celsius
Brand / Quality:
SKF - High Quality
Inside Diameter:
38.1mm = 1.5 (1-1/2) inch
Temperature Range:
High Temp
Technical
d 1-1/2 inch
A1 38.5mm
A2 14mm
B 49.2mm
J 101.5mm
L 130mm
N 14.3mm
G 12mm
T 54.2mm
Dynamic load C 30.7 kN
Static load Co 19 kN
Weight 1.94 kg
