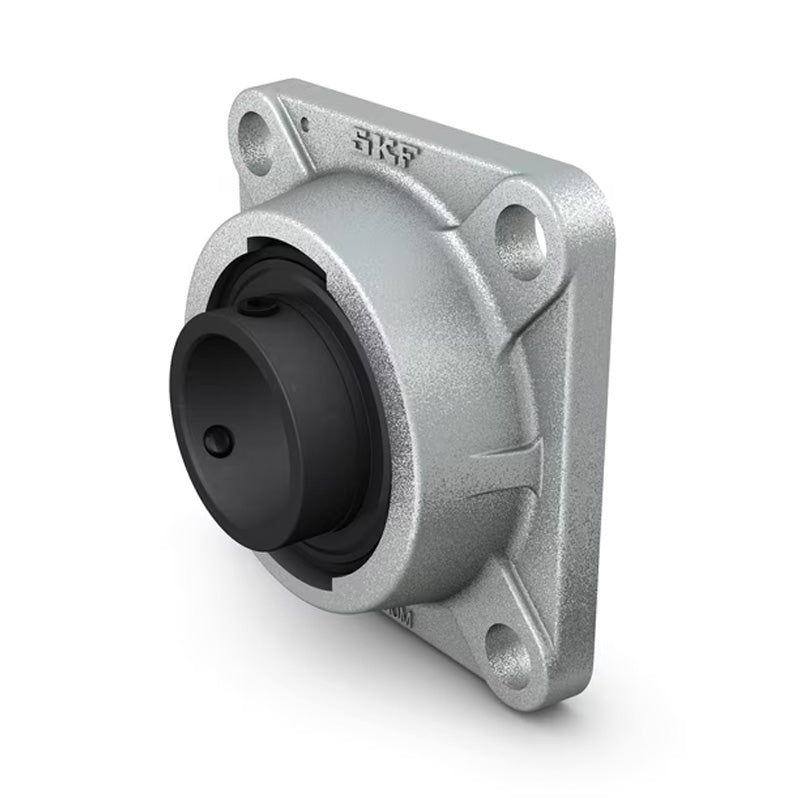

• SKF FY1-11/16TF/VA201 Y Bearing Four Bolt Square High Temperature Flange Unit Housing with Steel Cage Insert for Imperial Shaft 1-11/16inch
1 1

SKU: FY1.11/16TF/VA201-SKF

SKF FY1-11/16TF/VA201 Y Bearing Four Bolt Square High Temperature Flange Unit Housing with Steel Cage Insert for Imperial Shaft 1-11/16inch

SKF FY1-11/16TF/VA201 Y Bearing Four Bolt Square High Temperature Flange Unit Housing with Steel Cage Insert for Imperial Shaft 1-11/16inch
$346.51 ex VAT
$346.51 ex VAT
Sale Sold out

In stock

Price Break
10+ $232.10
19+ $219.06
29+ $216.45
39+ $213.84
49+ $211.24
74+ $208.63
99+ $195.59
199+ $192.98
249+ $190.37
499+ $187.77
999+ $182.55

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
SKF High Temperature Housings and Bearing Inserts: VA201 have a grey cast iron housing and have steel cages, they are lubricated with a polyalkylene glycol/graphite mixture and can be used at temperatures from -40 deg to +250 deg Celsius, at prolonged use over 200 deg Celsius dry lubricant pertains. All versions are characterised by their BLACK PHOSPHATED COATING on the inserts.They have a max rotational speed of 100 rpm
Benefits:High temp tolerance from -40 to +250 deg Celsius
Brand / Quality:
SKF - High Quality
Inside Diameter:
42.86mm = 1.687 (1-11/16) inch
Temperature Range:
High Temp
Technical
d 1-11/16 inch
A1 39mm
A2 14mm
B 49.2mm
J 105mm
L 137mm
N 15.9mm
G 14mm
T 54.2mm
Dynamic load C 33.2 kN
Static load Co 21.6 kN
Weight 2.25 kg
