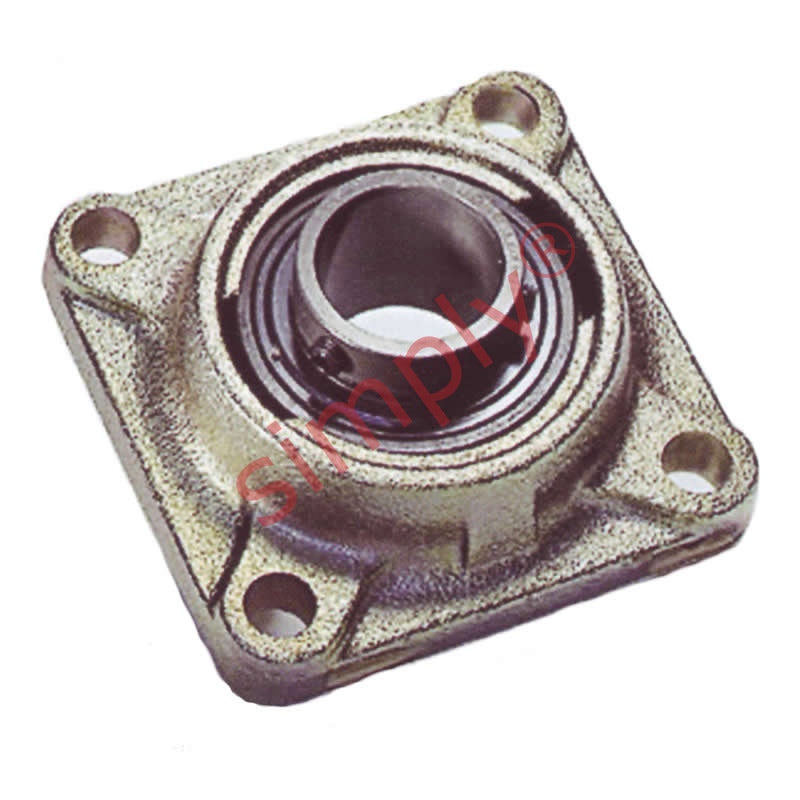

• SKF FY1-1-11/16TF/VA228 Y Bearing Four Bolt Square High Temperature Flange Unit Housing with Graphite Cage Insert for Imperial Shaft 1-11/16inch
1 1

SKU: FY1.11/16TF/VA228-SKF

SKF FY1-1-11/16TF/VA228 Y Bearing Four Bolt Square High Temperature Flange Unit Housing with Graphite Cage Insert for Imperial Shaft 1-11/16inch

SKF FY1-1-11/16TF/VA228 Y Bearing Four Bolt Square High Temperature Flange Unit Housing with Graphite Cage Insert for Imperial Shaft 1-11/16inch
$381.16 ex VAT
$381.16 ex VAT
Sale Sold out

In stock

Price Break
10+ $255.31
19+ $240.97
29+ $238.10
39+ $235.23
49+ $232.36
74+ $229.49
99+ $215.15
199+ $212.28
249+ $209.41
499+ $206.54
999+ $200.81

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
SKF High Temperature Housings and Bearing Inserts: VA228 have a grey cast iron housing and have a coronet type graphite cages, they are lubricated with a polyalkylene glycol/graphite mixture and can be used at temperatures from -50 deg to +350 deg Celsius, at prolonged use over 200 deg Celsius dry lubricant pertains. All versions are characterised by their BLACK PHOSPHATED COATING on the inserts. They have a max rotational speed of 100 rpm
Benefits:High temp tolerance from -50 to +350 deg Celsius
Brand / Quality:
SKF - High Quality
Inside Diameter:
42.86mm = 1.687 (1-11/16) inch
Temperature Range:
High Temp
Technical
d 1-11/16 inch
A1 39mm
A2 14mm
B 49.2mm
J 105mm
L 137mm
N 15.9mm
G 14mm
T 54.2mm
Dynamic load C 33.2 kN
Static load Co 21.6 kN
Weight 2.25 kg
