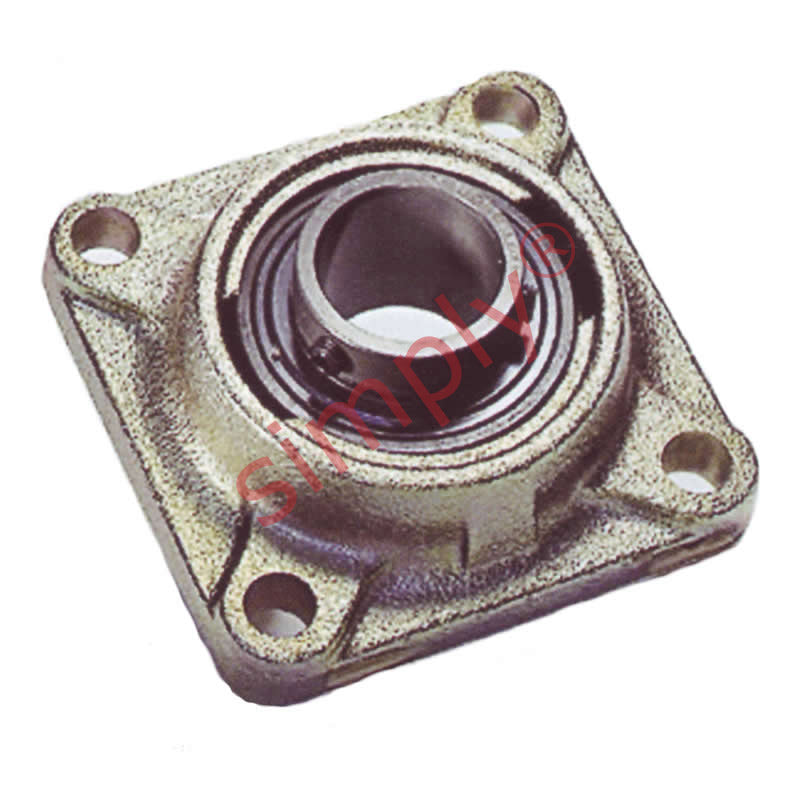

• SKF FY1-15/16TF/VA228 Y Bearing Four Bolt Square High Temperature Flange Unit Housing with Graphite Cage Insert for Imperial Shaft 1-15/16inch
1 1

SKU: FY1.15/16TF/VA228-SKF

SKF FY1-15/16TF/VA228 Y Bearing Four Bolt Square High Temperature Flange Unit Housing with Graphite Cage Insert for Imperial Shaft 1-15/16inch

SKF FY1-15/16TF/VA228 Y Bearing Four Bolt Square High Temperature Flange Unit Housing with Graphite Cage Insert for Imperial Shaft 1-15/16inch
$400.46 ex VAT
$400.46 ex VAT
Sale Sold out

In stock

Price Break
10+ $268.24
19+ $253.17
29+ $250.15
39+ $247.14
49+ $244.12
74+ $241.11
99+ $226.04
199+ $223.03
249+ $220.01
499+ $217.00
999+ $210.97

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
SKF High Temperature Housings and Bearing Inserts: VA228 have a grey cast iron housing and have a coronet type graphite cages, they are lubricated with a polyalkylene glycol/graphite mixture and can be used at temperatures from -50 deg to +350 deg Celsius, at prolonged use over 200 deg Celsius dry lubricant pertains. All versions are characterised by their BLACK PHOSPHATED COATING on the inserts. They have a max rotational speed of 100 rpm
Benefits:High temp tolerance from -50 to +350 deg Celsius
Brand / Quality:
SKF - High Quality
Inside Diameter:
49.21mm = 1.937 (1-15/16) inch
Temperature Range:
High Temp
Technical
d 1-15/16 inch
A1 43mm
A2 15mm
B 51.6mm
J 111mm
L 143mm
N 15.9mm
G 14mm
T 60.6mm
Dynamic load C 35.1 kN
Static load Co 23.2 kN
Weight 2.58 kg
