SKU: FY1.15/16WF-SKF
SKF FY1-15/16WF Square Cast Housing with Eccentric Collar 1-15/16 inch Insert
SKF FY1-15/16WF Square Cast Housing with Eccentric Collar 1-15/16 inch Insert
Regular price
$167.69
ex VAT
Regular price
Sale price
$167.69
ex VAT
In stock
Price Break
10+
$112.33
20+
$106.01
30+
$104.75
40+
$103.49
50+
$102.23
75+
$100.97
100+
$94.66
200+
$93.39
250+
$92.13
500+
$90.87
1000+
$88.35
Quantity
Couldn't load pickup availability
Description
Description
|
SKF Square Flanged Y-bearing Units with Cast Housing and Locking Collar: These units have a square flange and four holes for attachment bolts. A grease fitting in the housing allows the unit to be re-lubricated. This makes them especially suitable for bearing arrangements that operate under high levels of contamination, high speeds, high temperatures or relatively heavy loads. Benefits: Grease fitting allows re-lubrication |
- Brand / Quality:
- SKF - High Quality
- Inside Diameter:
- 49.21mm = 1.937 (1-15/16) inch
- Style:
- FY
- Bolt Hole Centres:
- 111mm

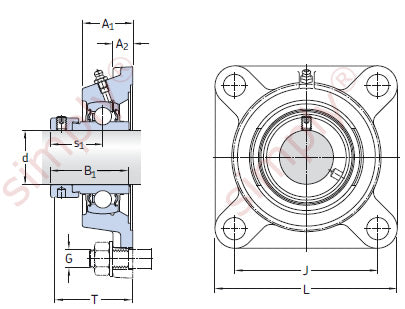

Technical
Technical
| d | 1-15/16 inch |
|---|---|
| A1 | 43mm |
| A2 | 15mm |
| B1 | 62.7mm |
| J | 111mm |
| L | 143mm |
| G | 14mm |
| s1 | 38.1mm |
| T | 66.1mm |
| Static load Cr | 23.2 kN |
| Dynamic load Cor | 35.1 kN |
| Fatigue load limit | 0.98 kN |
| Limiting speed | 4000 rpm |
| Weight | 2.75 kg |
| Housing | Insert |
