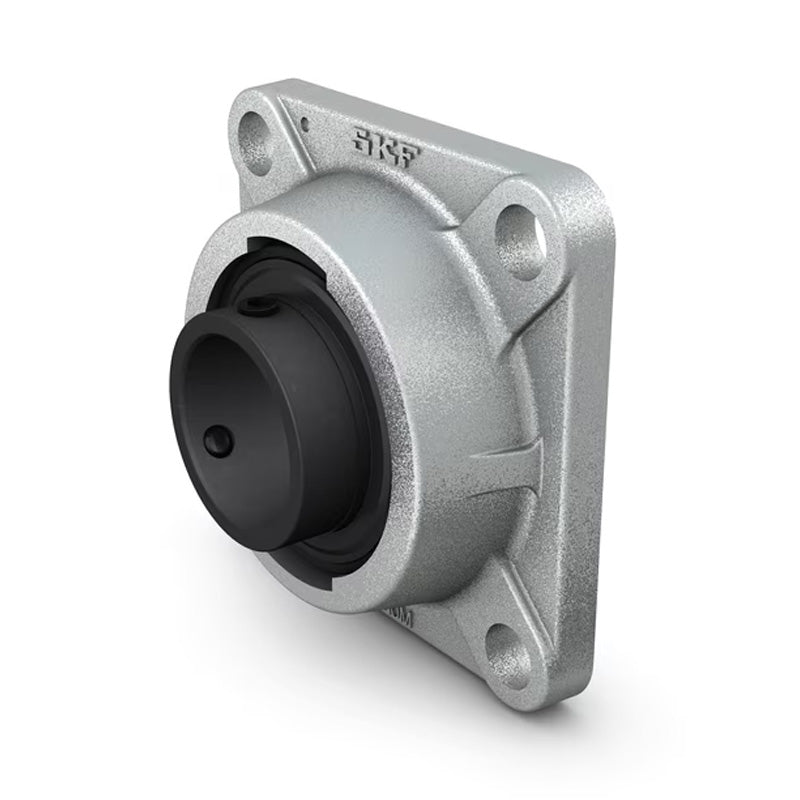

• SKF FY1-3/16TF/VA201 Y Bearing Four Bolt Square High Temperature Flange Unit Housing with Steel Cage Insert for Imperial Shaft 1-3/16inch
1 1

SKU: FY1.3/16TF/VA201-SKF

SKF FY1-3/16TF/VA201 Y Bearing Four Bolt Square High Temperature Flange Unit Housing with Steel Cage Insert for Imperial Shaft 1-3/16inch

SKF FY1-3/16TF/VA201 Y Bearing Four Bolt Square High Temperature Flange Unit Housing with Steel Cage Insert for Imperial Shaft 1-3/16inch
$273.90 ex VAT
$273.90 ex VAT
Sale Sold out

In stock

Price Break
10+ $183.46
19+ $173.16
29+ $171.09
39+ $169.03
49+ $166.97
74+ $164.91
99+ $154.60
199+ $152.54
249+ $150.48
499+ $148.42
999+ $144.30

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
SKF High Temperature Housings and Bearing Inserts: VA201 have a grey cast iron housing and have steel cages, they are lubricated with a polyalkylene glycol/graphite mixture and can be used at temperatures from -40 deg to +250 deg Celsius, at prolonged use over 200 deg Celsius dry lubricant pertains. All versions are characterised by their BLACK PHOSPHATED COATING on the inserts.They have a max rotational speed of 100 rpm
Benefits:High temp tolerance from -40 to +250 deg Celsius
Brand / Quality:
SKF - High Quality
Inside Diameter:
30.16mm = 1.187 (1-3/16) inch
Temperature Range:
High Temp
Technical
d 1-3/16 inch
A1 32.5mm
A2 13mm
B 38.1mm
J 82.5mm
L 108mm
N 12.7mm
G 10mm
T 42.2mm
Dynamic load C 19.5 kN
Static load Co 11.2 kN
Weight 1.11 kg
