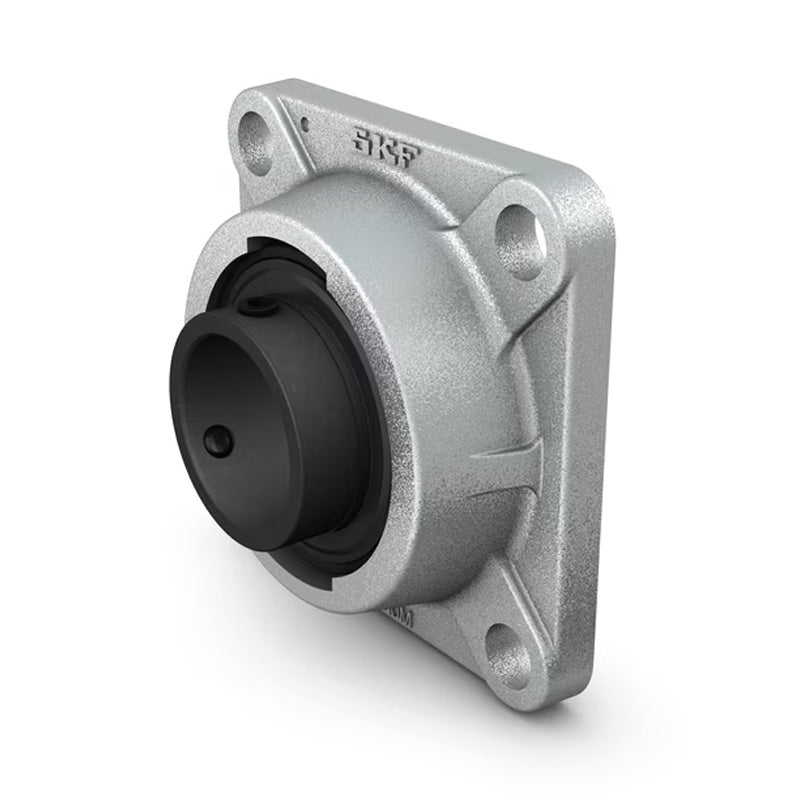

• SKF FY1-3/4TF/VA201 Y Bearing Four Bolt Square High Temperature Flange Unit Housing with Steel Cage Insert for Imperial Shaft 1-3/4inch
1 1

SKU: FY1.3/4TF/VA201-SKF

SKF FY1-3/4TF/VA201 Y Bearing Four Bolt Square High Temperature Flange Unit Housing with Steel Cage Insert for Imperial Shaft 1-3/4inch

SKF FY1-3/4TF/VA201 Y Bearing Four Bolt Square High Temperature Flange Unit Housing with Steel Cage Insert for Imperial Shaft 1-3/4inch
$344.37 ex VAT
$344.37 ex VAT
Sale Sold out

In stock

Price Break
10+ $230.67
19+ $217.71
29+ $215.12
39+ $212.52
49+ $209.93
74+ $207.34
99+ $194.38
199+ $191.79
249+ $189.20
499+ $186.61
999+ $181.42

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
SKF High Temperature Housings and Bearing Inserts: VA201 have a grey cast iron housing and have steel cages, they are lubricated with a polyalkylene glycol/graphite mixture and can be used at temperatures from -40 deg to +250 deg Celsius, at prolonged use over 200 deg Celsius dry lubricant pertains. All versions are characterised by their BLACK PHOSPHATED COATING on the inserts.They have a max rotational speed of 100 rpm
Benefits:High temp tolerance from -40 to +250 deg Celsius
Brand / Quality:
SKF - High Quality
Inside Diameter:
44.45mm = 1.75 (1-3/4) inch
Temperature Range:
High Temp
Technical
d 1-3/4 inch
A1 39mm
A2 14mm
B 49.2mm
J 105mm
L 137mm
N 15.9mm
G 14mm
T 54.2mm
Dynamic load C 33.2 kN
Static load Co 21.6 kN
Weight 2.12 kg
