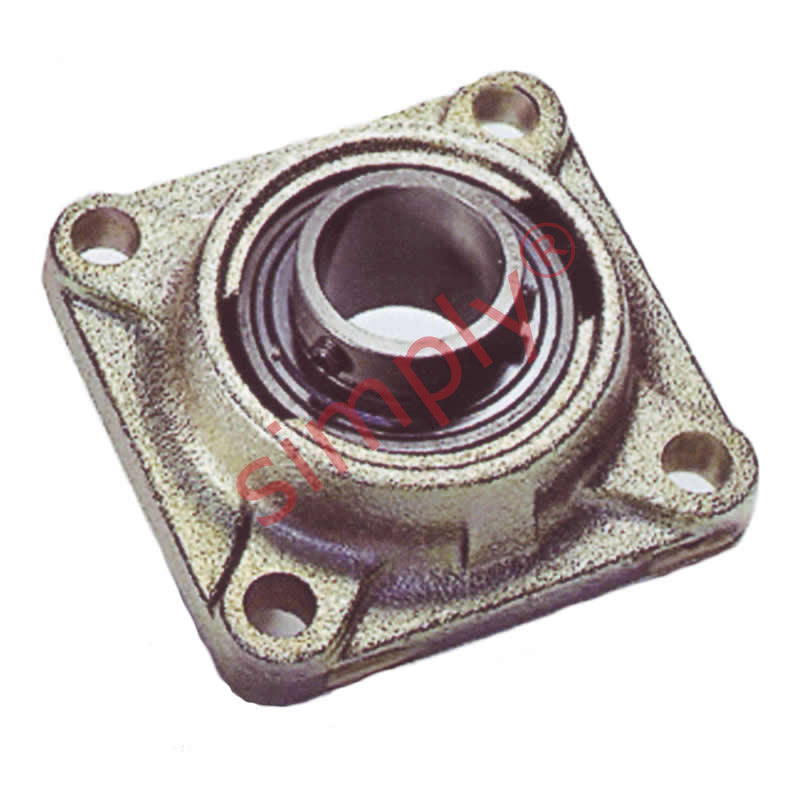

• SKF FY1-3/4TF/VA228 Y Bearing Four Bolt Square High Temperature Flange Unit Housing with Graphite Cage Insert for Imperial Shaft 1-3/4inch
1 1

SKU: FY1.3/4TF/VA228-SKF

SKF FY1-3/4TF/VA228 Y Bearing Four Bolt Square High Temperature Flange Unit Housing with Graphite Cage Insert for Imperial Shaft 1-3/4inch

SKF FY1-3/4TF/VA228 Y Bearing Four Bolt Square High Temperature Flange Unit Housing with Graphite Cage Insert for Imperial Shaft 1-3/4inch
$378.80 ex VAT
$378.80 ex VAT
Sale Sold out

In stock

Price Break
10+ $253.73
19+ $239.48
29+ $236.63
39+ $233.78
49+ $230.93
74+ $228.08
99+ $213.82
199+ $210.97
249+ $208.12
499+ $205.27
999+ $199.57

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
SKF High Temperature Housings and Bearing Inserts: VA228 have a grey cast iron housing and have a coronet type graphite cages, they are lubricated with a polyalkylene glycol/graphite mixture and can be used at temperatures from -50 deg to +350 deg Celsius, at prolonged use over 200 deg Celsius dry lubricant pertains. All versions are characterised by their BLACK PHOSPHATED COATING on the inserts. They have a max rotational speed of 100 rpm
Benefits:High temp tolerance from -50 to +350 deg Celsius
Brand / Quality:
SKF - High Quality
Inside Diameter:
44.45mm = 1.75 (1-3/4) inch
Temperature Range:
High Temp
Technical
d 1-3/4 inch
A1 39mm
A2 14mm
B 49.2mm
J 105mm
L 137mm
N 15.9mm
G 14mm
T 54.2mm
Dynamic load C 33.2 kN
Static load Co 21.6 kN
Weight 2.12 kg
