SKU: FY1.TF-SKF

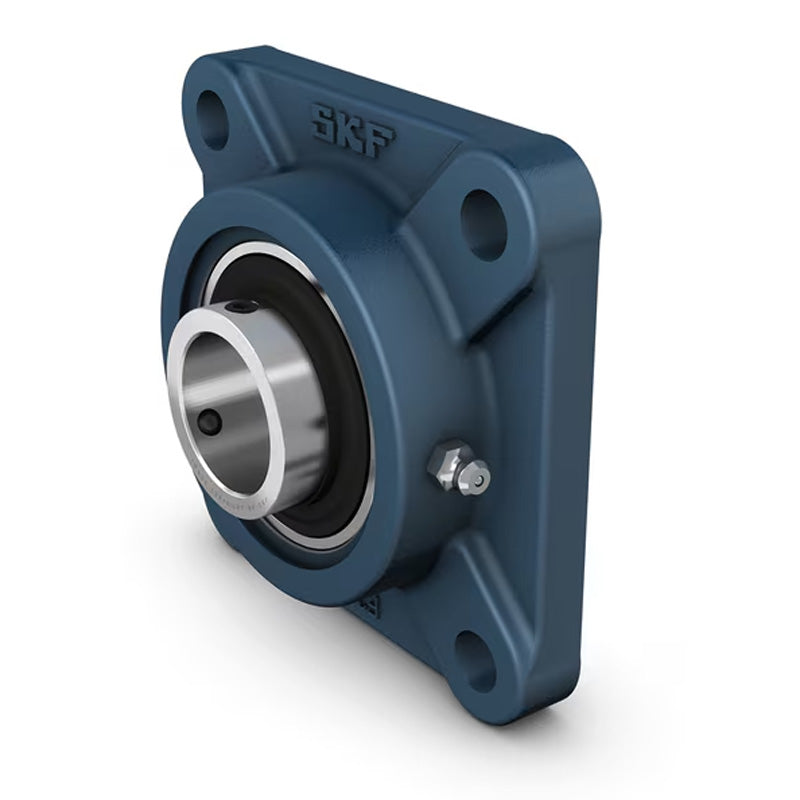

SKF FY1TF Square Cast Housing with Grub Screw 1 inch Insert
SKF FY1TF Square Cast Housing with Grub Screw 1 inch Insert
Regular price
$65.12
ex VAT
Regular price
Sale price
$65.12
ex VAT
In stock
Price Break
10+
$43.62
20+
$41.17
30+
$40.68
40+
$40.19
50+
$39.70
75+
$39.21
100+
$36.76
200+
$36.27
250+
$35.78
500+
$35.29
1000+
$34.31
Quantity
Couldn't load pickup availability
Description
Description
|
SKF Square Flanged Y-bearing Units with Cast Housing: These units have a square flange and four holes for attachment bolts. A grease fitting in the housing allows the unit to be re-lubricated. This makes them especially suitable for bearing arrangements that operate under high levels of contamination, high speeds, high temperatures or relatively heavy loads. Benefits: Grease fitting allows re-lubrication |
- Brand / Quality:
- SKF - High Quality
- Inside Diameter:
- 25.4mm = 1 inch
- Style:
- FY
- Bolt Hole Centres:
- 70mm
Technical
Technical
| d | 1 inch |
|---|---|
| A1 | 30mm |
| A2 | 12mm |
| B | 34.1mm |
| Da | 74.6mm |
| J | 70mm |
| L | 95mm |
| N | 11.5mm |
| G | 10mm |
| s1 | 19.8mm |
| T | 38.8mm |
| Static load Cr | 7.8 kN |
| Dynamic load Cor | 14 kN |
| Fatigue load limit | 0.335 kN |
| Limiting speed | 7000 rpm |
| A5 | 18mm |
| Weight | 0.77 kg |
| Housing | FY505M |
| Insert | YAR205-100-2F |
