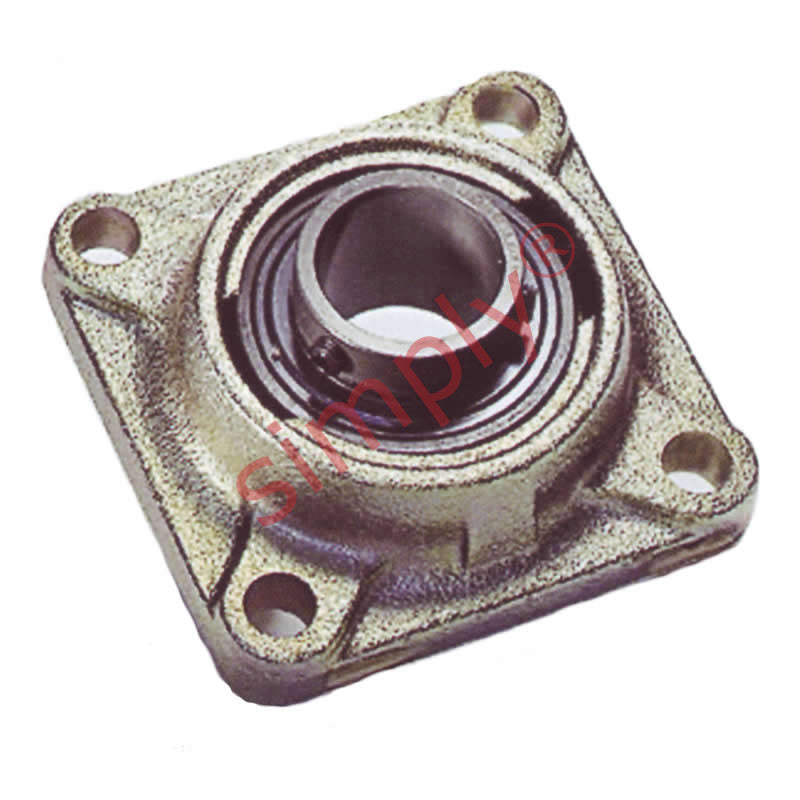

• SKF FY1-TF/VA228 Y Bearing Four Bolt Square High Temperature Flange Unit Housing with Graphite Cage Insert for Imperial Shaft 1inch
1 1

SKU: FY1.TF/VA228-SKF

SKF FY1-TF/VA228 Y Bearing Four Bolt Square High Temperature Flange Unit Housing with Graphite Cage Insert for Imperial Shaft 1inch

SKF FY1-TF/VA228 Y Bearing Four Bolt Square High Temperature Flange Unit Housing with Graphite Cage Insert for Imperial Shaft 1inch
$224.87 ex VAT
$224.87 ex VAT
Sale Sold out

In stock

Price Break
10+ $150.62
19+ $142.16
29+ $140.47
39+ $138.77
49+ $137.08
74+ $135.39
99+ $126.93
199+ $125.24
249+ $123.54
499+ $121.85
999+ $118.47

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
SKF High Temperature Housings and Bearing Inserts: VA228 have a grey cast iron housing and have a coronet type graphite cages, they are lubricated with a polyalkylene glycol/graphite mixture and can be used at temperatures from -50 deg to +350 deg Celsius, at prolonged use over 200 deg Celsius dry lubricant pertains. All versions are characterised by their BLACK PHOSPHATED COATING on the inserts. They have a max rotational speed of 100 rpm
Benefits:High temp tolerance from -50 to +350 deg Celsius
Brand / Quality:
SKF - High Quality
Inside Diameter:
25.4mm = 1 inch
Temperature Range:
High Temp
Technical
d 1 inch
A1 30mm
A2 12mm
B 34.1mm
J 70mm
L 95mm
N 12.7mm
G 10mm
T 38.8mm
Dynamic load C 14 kN
Static load Co 7.8 kN
Weight 0.79 kg
