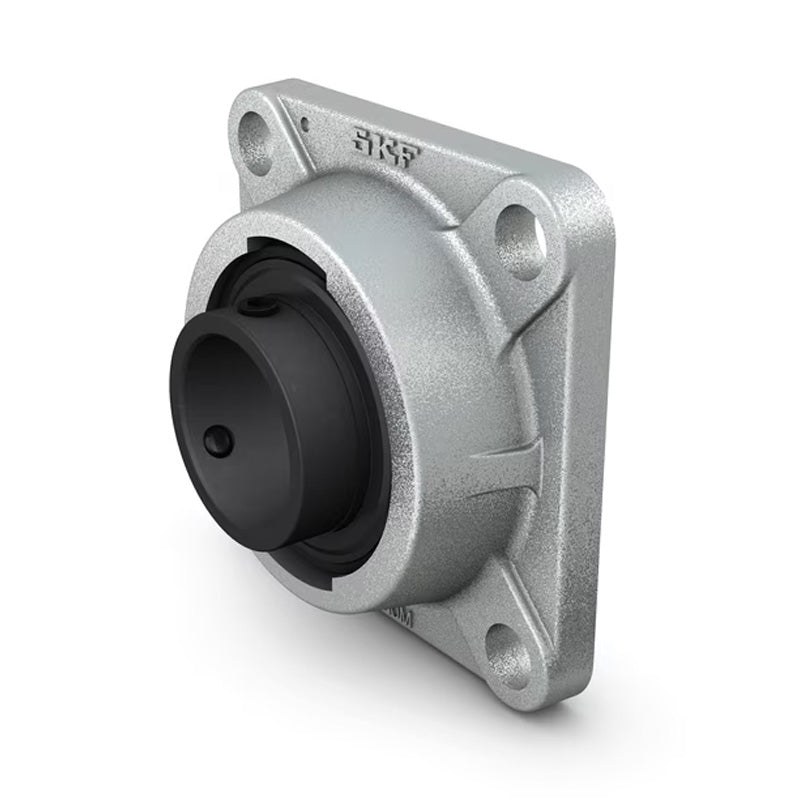

• SKF FY2-3/16TF/VA228 Y Bearing Four Bolt Square High Temperature Flange Unit Housing with Graphite Cage Insert for Imperial Shaft 2-3/16inch
1 1

SKU: FY2.3/16TF/VA228-SKF

SKF FY2-3/16TF/VA228 Y Bearing Four Bolt Square High Temperature Flange Unit Housing with Graphite Cage Insert for Imperial Shaft 2-3/16inch

SKF FY2-3/16TF/VA228 Y Bearing Four Bolt Square High Temperature Flange Unit Housing with Graphite Cage Insert for Imperial Shaft 2-3/16inch
$487.86 ex VAT
$487.86 ex VAT
Sale Sold out

In stock

Price Break
10+ $326.78
19+ $308.42
29+ $304.75
39+ $301.08
49+ $297.40
74+ $293.73
99+ $275.37
199+ $271.70
249+ $268.03
499+ $264.36
999+ $257.02

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
SKF High Temperature Housings and Bearing Inserts: VA228 have a grey cast iron housing and have a coronet type graphite cages, they are lubricated with a polyalkylene glycol/graphite mixture and can be used at temperatures from -50 deg to +350 deg Celsius, at prolonged use over 200 deg Celsius dry lubricant pertains. All versions are characterised by their BLACK PHOSPHATED COATING on the inserts. They have a max rotational speed of 100 rpm
Benefits:High temp tolerance from -50 to +350 deg Celsius
Brand / Quality:
SKF - High Quality
Inside Diameter:
55.56mm = 2.187 (2-3/16) inch
Temperature Range:
High Temp
Technical
d 2-3/16 inch
A1 47.5mm
A2 16mm
B 55.6mm
J 130mm
L 162mm
N 19mm
G 16mm
T 64.4mm
Dynamic load C 25 kN
Static load Co 29 kN
Weight 3.7 kg
