• SKF FY2-7/16TF/VA228 Y Bearing Four Bolt Square High Temperature Flange Unit Housing with Graphite Cage Insert for Imperial Shaft 2-7/16inch
1 1

SKU: FY2.7/16TF/VA228-SKF

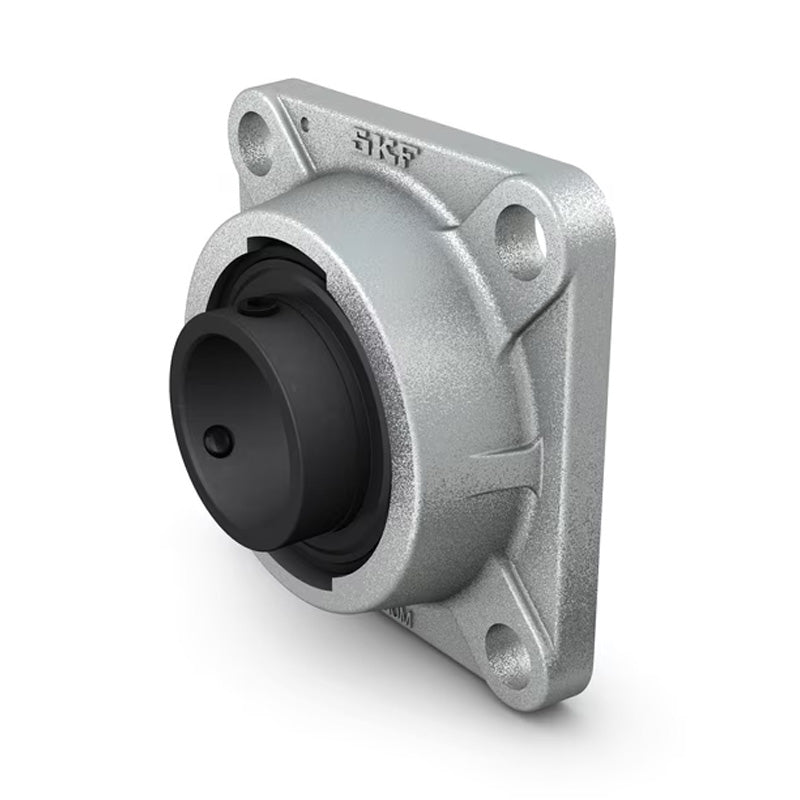

SKF FY2-7/16TF/VA228 Y Bearing Four Bolt Square High Temperature Flange Unit Housing with Graphite Cage Insert for Imperial Shaft 2-7/16inch

SKF FY2-7/16TF/VA228 Y Bearing Four Bolt Square High Temperature Flange Unit Housing with Graphite Cage Insert for Imperial Shaft 2-7/16inch
$621.55 ex VAT
$621.55 ex VAT
Sale Sold out

In stock

Price Break
10+ $416.33
19+ $392.94
29+ $388.27
39+ $383.59
49+ $378.91
74+ $374.23
99+ $350.84
199+ $346.16
249+ $341.49
499+ $336.81
999+ $327.45

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
SKF High Temperature Housings and Bearing Inserts: VA228 have a grey cast iron housing and have a coronet type graphite cages, they are lubricated with a polyalkylene glycol/graphite mixture and can be used at temperatures from -50 deg to +350 deg Celsius, at prolonged use over 200 deg Celsius dry lubricant pertains. All versions are characterised by their BLACK PHOSPHATED COATING on the inserts. They have a max rotational speed of 100 rpm
Benefits:High temp tolerance from -50 to +350 deg Celsius
Brand / Quality:
SKF - High Quality
Inside Diameter:
61.91mm = 2.437 (2-7/16) inch
Temperature Range:
High Temp
Technical
d 2-7/16 inch
A1 52mm
A2 17mm
B 65.1mm
J 143mm
L 175mm
N 19mm
G 16mm
T 73.7mm
Dynamic load C 52.7 kN
Static load Co 36 kN
Weight 4.65 kg
