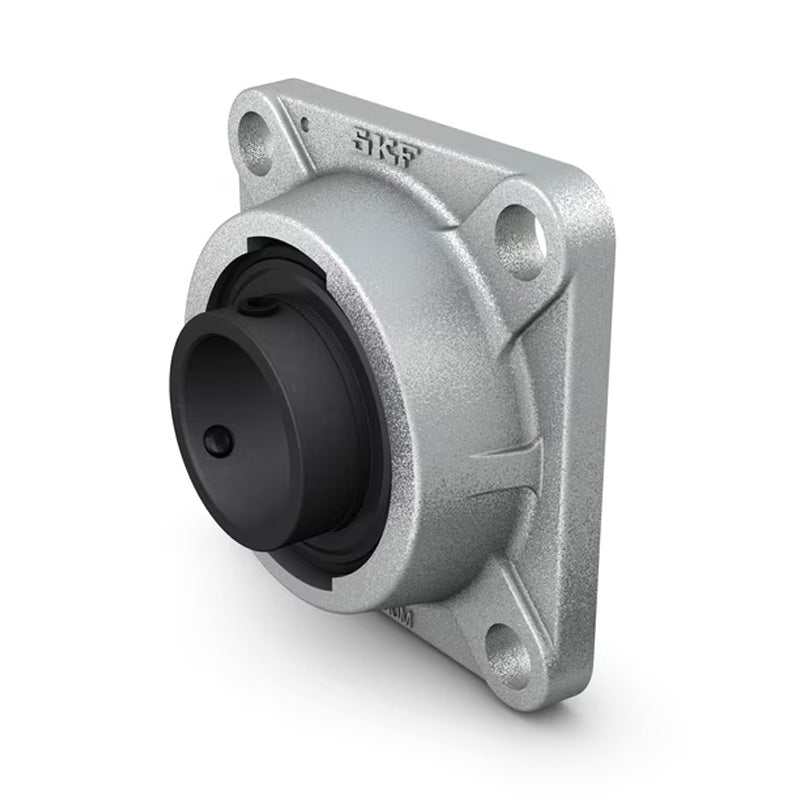

• SKF FY2-TF/VA228 Y Bearing Four Bolt Square High Temperature Flange Unit Housing with Graphite Cage Insert for Imperial Shaft 2inch
1 1

SKU: FY2.TF/VA228-SKF

SKF FY2-TF/VA228 Y Bearing Four Bolt Square High Temperature Flange Unit Housing with Graphite Cage Insert for Imperial Shaft 2inch

SKF FY2-TF/VA228 Y Bearing Four Bolt Square High Temperature Flange Unit Housing with Graphite Cage Insert for Imperial Shaft 2inch
$448.94 ex VAT
$448.94 ex VAT
Sale Sold out

In stock

Price Break
10+ $300.72
19+ $283.82
29+ $280.44
39+ $277.07
49+ $273.69
74+ $270.31
99+ $253.41
199+ $250.03
249+ $246.66
499+ $243.28
999+ $236.52

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
SKF High Temperature Housings and Bearing Inserts: VA228 have a grey cast iron housing and have a coronet type graphite cages, they are lubricated with a polyalkylene glycol/graphite mixture and can be used at temperatures from -50 deg to +350 deg Celsius, at prolonged use over 200 deg Celsius dry lubricant pertains. All versions are characterised by their BLACK PHOSPHATED COATING on the inserts. They have a max rotational speed of 100 rpm
Benefits:High temp tolerance from -50 to +350 deg Celsius
Brand / Quality:
SKF - High Quality
Inside Diameter:
50.8mm = 2 inch
Temperature Range:
High Temp
Technical
d 2 inch
A1 47.5mm
A2 16mm
B 55.6mm
J 130mm
L 162mm
N 19mm
G 16mm
T 64.4mm
Dynamic load C 43.6 kN
Static load Co 29 kN
Weight 3.75 kg
