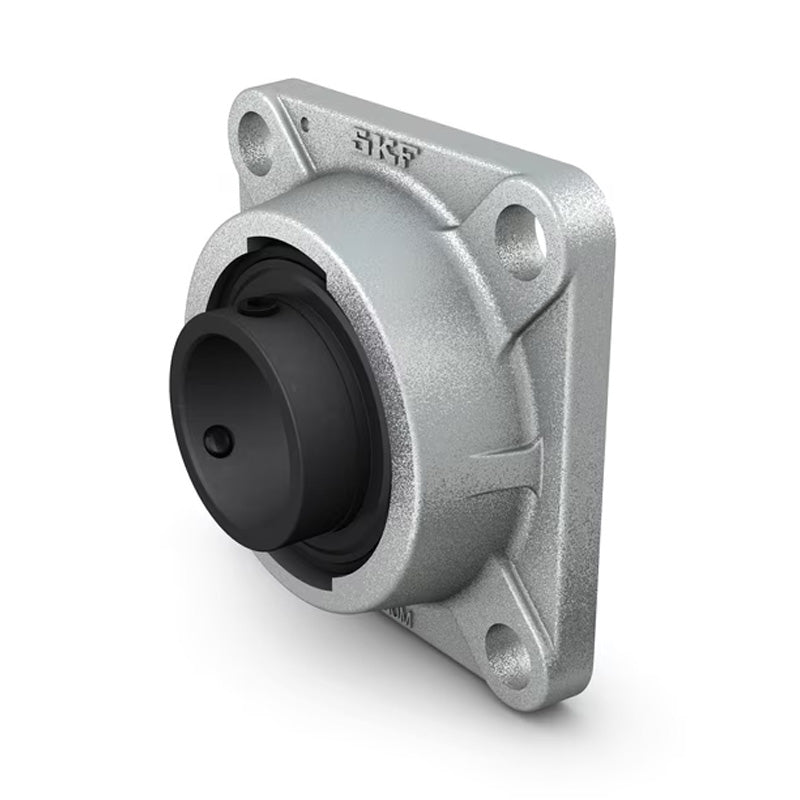

• SKF FY20TFVA201 Y Bearing Four Bolt Square High Temperature Flange Unit Housing with Steel Cage Insert for Metric Shaft 20mm
1 1

SKU: FY20TF/VA201-SKF

SKF FY20TFVA201 Y Bearing Four Bolt Square High Temperature Flange Unit Housing with Steel Cage Insert for Metric Shaft 20mm

SKF FY20TFVA201 Y Bearing Four Bolt Square High Temperature Flange Unit Housing with Steel Cage Insert for Metric Shaft 20mm
$201.84 ex VAT
$201.84 ex VAT
Sale Sold out

In stock

Price Break
10+ $135.20
19+ $127.60
29+ $126.08
39+ $124.56
49+ $123.05
74+ $121.53
99+ $113.93
199+ $112.41
249+ $110.89
499+ $109.37
999+ $106.34

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
SKF High Temperature Housings and Bearing Inserts: VA201 have a grey cast iron housing and have steel cages, they are lubricated with a polyalkylene glycol/graphite mixture and can be used at temperatures from -40 deg to +250 deg Celsius, at prolonged use over 200 deg Celsius dry lubricant pertains. All versions are characterised by their BLACK PHOSPHATED COATING on the inserts.They have a max rotational speed of 100 rpm
Benefits:High temp tolerance from -40 to +250 deg Celsius
Brand / Quality:
SKF - High Quality
Inside Diameter:
20mm
Temperature Range:
High Temp
Technical
d 20mm
A1 29.5mm
A2 11mm
B 31mm
J 63.5mm
L 86mm
N 11.1mm
G 10mm
T 37.3mm
Dynamic load C 12.7 kN
Static load Co 6.55 kN
Weight 0.6 kg
