SKF FY20WF Square Cast Housing with Eccentric Locking Collar 20mm Insert
SKF FY20WF Square Cast Housing with Eccentric Locking Collar 20mm Insert
Out of stock
Description
Description
|

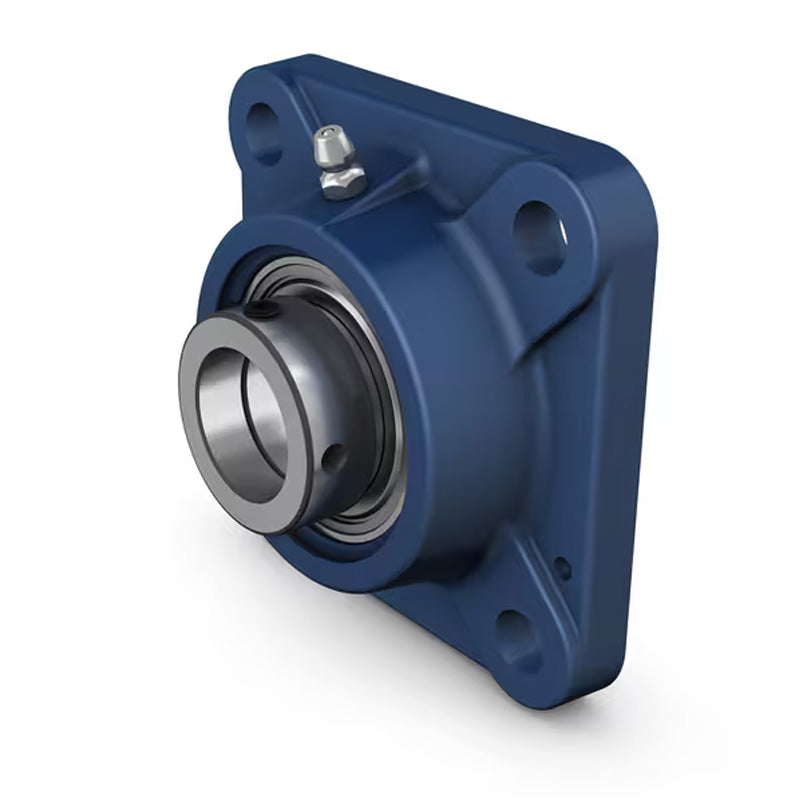

SKF Square Flanged Y-bearing Units with Cast Housing and Locking Collar: These units have a square flange and four holes for attachment bolts. A grease fitting in the housing allows the unit to be re-lubricated. This makes them especially suitable for bearing arrangements that operate under high levels of contamination, high speeds, high temperatures or relatively heavy loads. Benefits: Grease fitting allows re-lubrication |
- Brand / Quality:
- SKF - High Quality
- Inside Diameter:
- 20mm
- Style:
- FY
- Bolt Hole Centres:
- 63.5mm
Technical
Technical
| d | 20mm |
|---|---|
| A1 | 29.5mm |
| A2 | 11mm |
| B1 | 43.7mm |
| Da | 68.3mm |
| J | 63.5mm |
| L | 86mm |
| N | 11.5mm |
| G | 10mm |
| s1 | 26.6mm |
| T | 45.6mm |
| Static load Cr | 6.55 kN |
| Dynamic load Cor | 12.7 kN |
| Fatigue load limit Pu | 0.28 kN |
| Limiting speed | 8500 rpm |
| A5 | 18.5mm |
| Weight | 0.65 kg |
| Compatible end cover closed | ECY204 |
