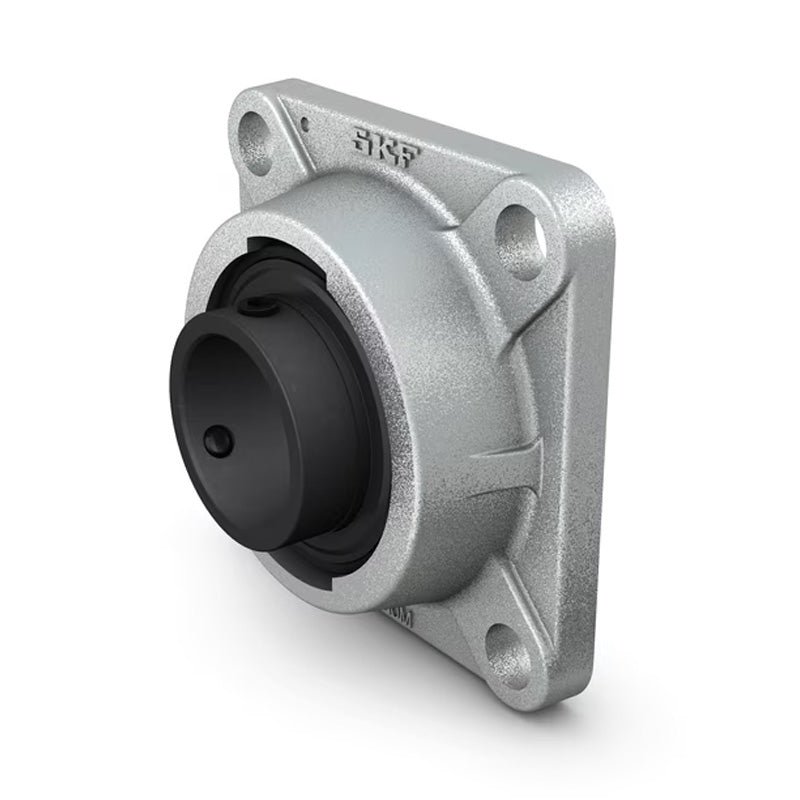

• SKF FY25TFVA228 Y Bearing Four Bolt Square High Temperature Flange Unit Housing with Graphite Cage Insert for Metric Shaft 25mm
1 1

SKU: FY25TF/VA228-SKF

SKF FY25TFVA228 Y Bearing Four Bolt Square High Temperature Flange Unit Housing with Graphite Cage Insert for Metric Shaft 25mm

SKF FY25TFVA228 Y Bearing Four Bolt Square High Temperature Flange Unit Housing with Graphite Cage Insert for Metric Shaft 25mm
$224.31 ex VAT
$224.31 ex VAT
Sale Sold out

In stock

Price Break
10+ $150.25
19+ $141.81
29+ $140.12
39+ $138.44
49+ $136.75
74+ $135.06
99+ $126.62
199+ $124.93
249+ $123.24
499+ $121.55
999+ $118.18

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
SKF High Temperature Housings and Bearing Inserts: VA228 have a grey cast iron housing and have a coronet type graphite cages, they are lubricated with a polyalkylene glycol/graphite mixture and can be used at temperatures from -50 deg to +350 deg Celsius, at prolonged use over 200 deg Celsius dry lubricant pertains. All versions are characterised by their BLACK PHOSPHATED COATING on the inserts. They have a max rotational speed of 100 rpm
Benefits:High temp tolerance from -50 to +350 deg Celsius
Brand / Quality:
SKF - High Quality
Inside Diameter:
25mm
Temperature Range:
High Temp
Technical
d 25mm
A1 30mm
A2 12mm
B 34.1mm
J 70mm
L 95mm
N 12.7mm
G 10mm
T 38.8mm
Dynamic load C 14 kN
Static load Co 7.8 kN
Weight 0.77 kg
