SKU: FY30FM-SKF

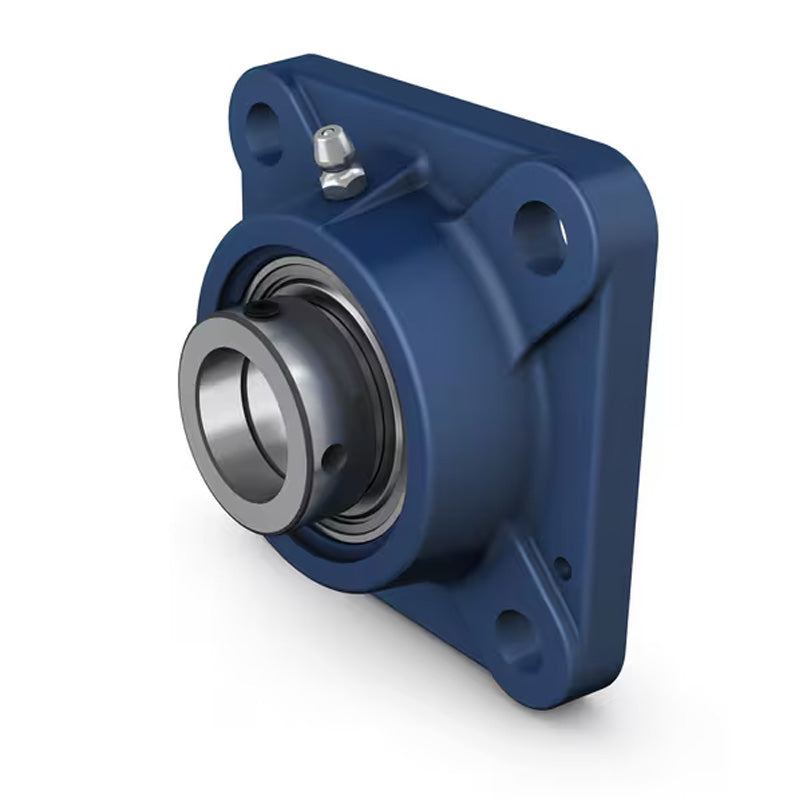

SKF FY30FM Square Cast Housing with Eccentric Locking Collar 30mm Insert
SKF FY30FM Square Cast Housing with Eccentric Locking Collar 30mm Insert
Regular price
$69.64
ex VAT
Regular price
Sale price
$69.64
ex VAT
In stock
Price Break
10+
$46.64
20+
$44.02
30+
$43.50
40+
$42.98
50+
$42.45
75+
$41.93
100+
$39.31
200+
$38.78
250+
$38.26
500+
$37.73
1000+
$36.69
Quantity
Couldn't load pickup availability
Description
Description
|
SKF Square Flanged Y-bearing Units with Cast Housing and Locking Collar: These units have a square flange and four holes for attachment bolts. A grease fitting in the housing allows the unit to be re-lubricated. This makes them especially suitable for bearing arrangements that operate under high levels of contamination, high speeds, high temperatures or relatively heavy loads. Benefits: Grease fitting allows re-lubrication |
- Brand / Quality:
- SKF - High Quality
- Inside Diameter:
- 30mm
- Style:
- FY
- Bolt Hole Centres:
- 82.5mm
Technical
Technical
| d | 30mm |
|---|---|
| A1 | 32.5mm |
| A2 | 13mm |
| B1 | 35.7mm |
| Da | 93.7mm |
| J | 82.5mm |
| L | 108mm |
| N | 11.5mm |
| G | 10mm |
| s1 | 26.7mm |
| T | 46.7mm |
| Static load Cr | 11.2 kN |
| Dynamic load Cor | 19.5 kN |
| Fatigue load limit Pu | 0.475 kN |
| Limiting speed | 6300 rpm |
| A5 | 20mm |
| Weight | 1.1 kg |
| Compatible end cover closed | ECY206 |
