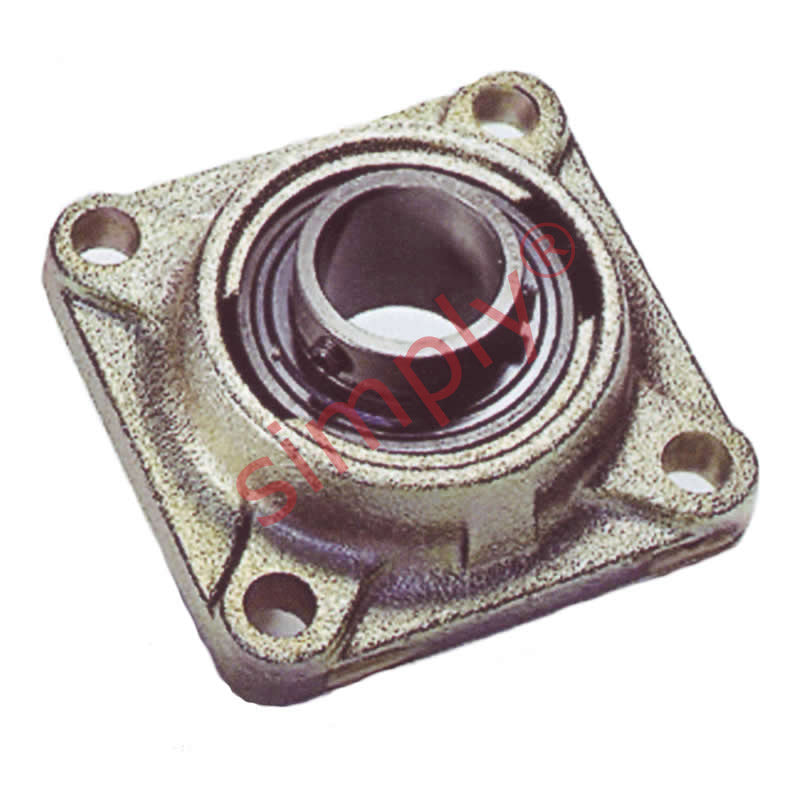

• SKF FY30TFVA228 Y Bearing Four Bolt Square High Temperature Flange Unit Housing with Graphite Cage Insert for Metric Shaft 30mm
1 1

SKU: FY30TF/VA228-SKF

SKF FY30TFVA228 Y Bearing Four Bolt Square High Temperature Flange Unit Housing with Graphite Cage Insert for Metric Shaft 30mm

SKF FY30TFVA228 Y Bearing Four Bolt Square High Temperature Flange Unit Housing with Graphite Cage Insert for Metric Shaft 30mm
$290.84 ex VAT
$290.84 ex VAT
Sale Sold out

In stock

Price Break
10+ $194.81
19+ $183.87
29+ $181.68
39+ $179.49
49+ $177.30
74+ $175.11
99+ $164.17
199+ $161.98
249+ $159.79
499+ $157.60
999+ $153.22

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
SKF High Temperature Housings and Bearing Inserts: VA228 have a grey cast iron housing and have a coronet type graphite cages, they are lubricated with a polyalkylene glycol/graphite mixture and can be used at temperatures from -50 deg to +350 deg Celsius, at prolonged use over 200 deg Celsius dry lubricant pertains. All versions are characterised by their BLACK PHOSPHATED COATING on the inserts. They have a max rotational speed of 100 rpm
Benefits:High temp tolerance from -50 to +350 deg Celsius
Brand / Quality:
SKF - High Quality
Inside Diameter:
30mm
Temperature Range:
High Temp
Technical
d 30mm
A1 32.5mm
A2 13mm
B 38.1mm
J 82.5mm
L 108mm
N 12.7mm
G 10mm
T 42.2mm
Dynamic load C 19.5 kN
Static load Co 11.2 kN
Weight 1.08 kg
