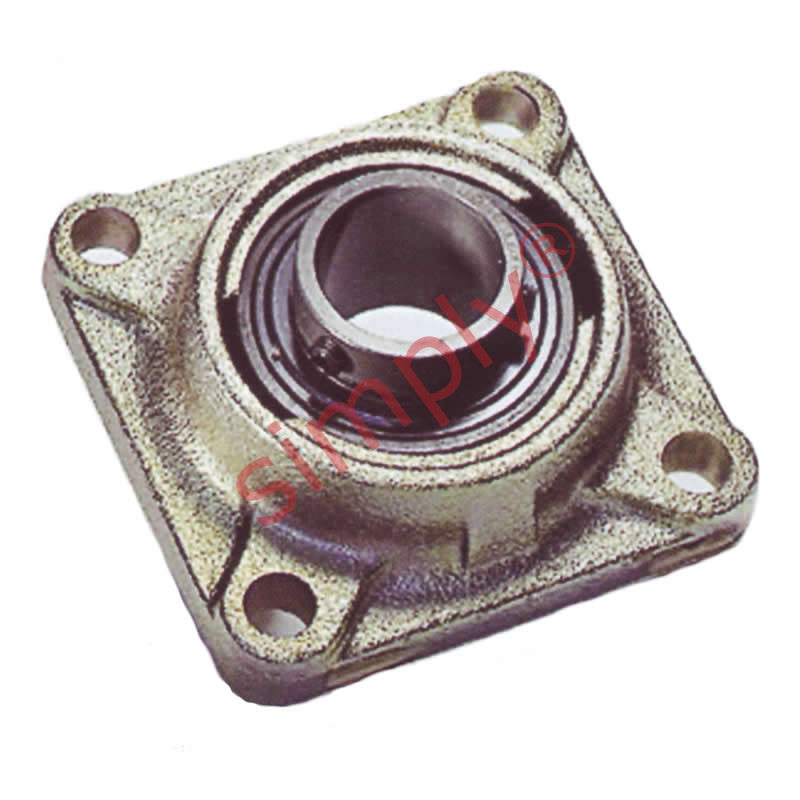

• SKF FY35TFVA228 Y Bearing Four Bolt Square High Temperature Flange Unit Housing with Graphite Cage Insert for Metric Shaft 35mm
1 1

SKU: FY35TF/VA228-SKF

SKF FY35TFVA228 Y Bearing Four Bolt Square High Temperature Flange Unit Housing with Graphite Cage Insert for Metric Shaft 35mm

SKF FY35TFVA228 Y Bearing Four Bolt Square High Temperature Flange Unit Housing with Graphite Cage Insert for Metric Shaft 35mm
$325.88 ex VAT
$325.88 ex VAT
Sale Sold out

In stock

Price Break
10+ $218.28
19+ $206.02
29+ $203.56
39+ $201.11
49+ $198.66
74+ $196.21
99+ $183.94
199+ $181.49
249+ $179.04
499+ $176.59
999+ $171.68

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
SKF High Temperature Housings and Bearing Inserts: VA228 have a grey cast iron housing and have a coronet type graphite cages, they are lubricated with a polyalkylene glycol/graphite mixture and can be used at temperatures from -50 deg to +350 deg Celsius, at prolonged use over 200 deg Celsius dry lubricant pertains. All versions are characterised by their BLACK PHOSPHATED COATING on the inserts. They have a max rotational speed of 100 rpm
Benefits:High temp tolerance from -50 to +350 deg Celsius
Brand / Quality:
SKF - High Quality
Inside Diameter:
35mm
Temperature Range:
High Temp
Technical
d 35mm
A1 34.5mm
A2 13mm
B 42.9mm
J 92mm
L 118mm
N 14.3mm
G 12mm
T 46.4mm
Dynamic load C 25.5 kN
Static load Co 15.3 kN
Weight 1.41 kg
