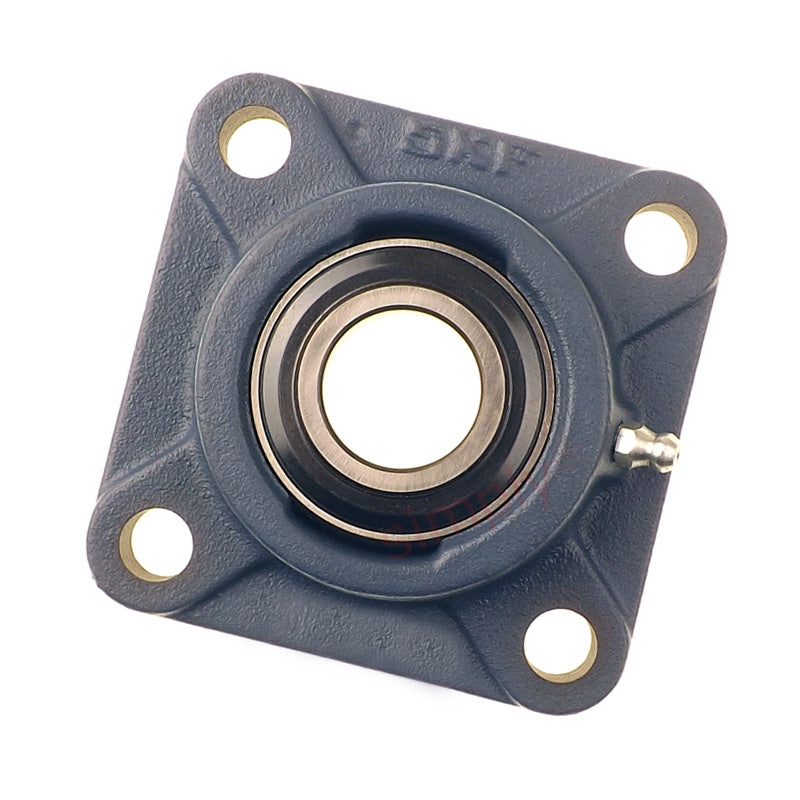

SKF FY35TR Square Cast Housing with Grub Screw 35mm Insert
SKF FY35TR Square Cast Housing with Grub Screw 35mm Insert
Regular price
$98.52
ex VAT
Regular price
Sale price
$98.52
ex VAT
In stock
Price Break
10+
$65.99
20+
$62.29
30+
$61.54
40+
$60.80
50+
$60.06
75+
$59.32
100+
$55.61
200+
$54.87
250+
$54.13
500+
$53.39
1000+
$51.90
Quantity
Couldn't load pickup availability
Description
Description
|
SKF Square Flanged Y-bearing Units with Cast Housing: These units have a square flange and four holes for attachment bolts. A grease fitting in the housing allows the unit to be re-lubricated. This makes them especially suitable for bearing arrangements that operate under high levels of contamination, high speeds, high temperatures or relatively heavy loads. Benefits: Grease fitting allows re-lubrication |
- Brand / Quality:
- SKF - High Quality
- Inside Diameter:
- 35mm
- Style:
- FY
- Bolt Hole Centres:
- 92mm
Technical
Technical

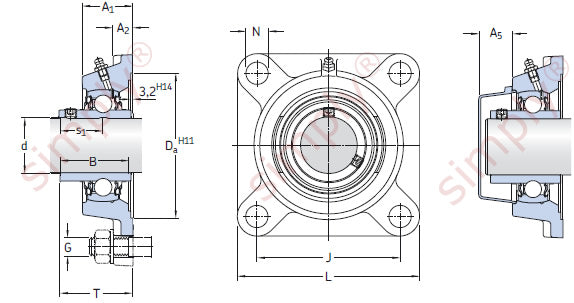

| d | 35mm |
|---|---|
| A1 | 34.5mm |
| A2 | 13mm |
| B | 42.9mm |
| Da | 106.4mm |
| J | 92mm |
| L | 118mm |
| N | 14mm |
| G | 12mm |
| s1 | 25.4mm |
| T | 46.4mm |
| Static load Cr | 15.3 kN |
| Dynamic load Cor | 25.5 kN |
| Fatigue load limit Pu | 0.655 kN |
| Limiting speed | 3200 rpm |
| A5 | 22mm |
| Weight | 1.4 kg |
| Compatible end cover closed | ECY207 |
