SKU: FY40TR-SKF

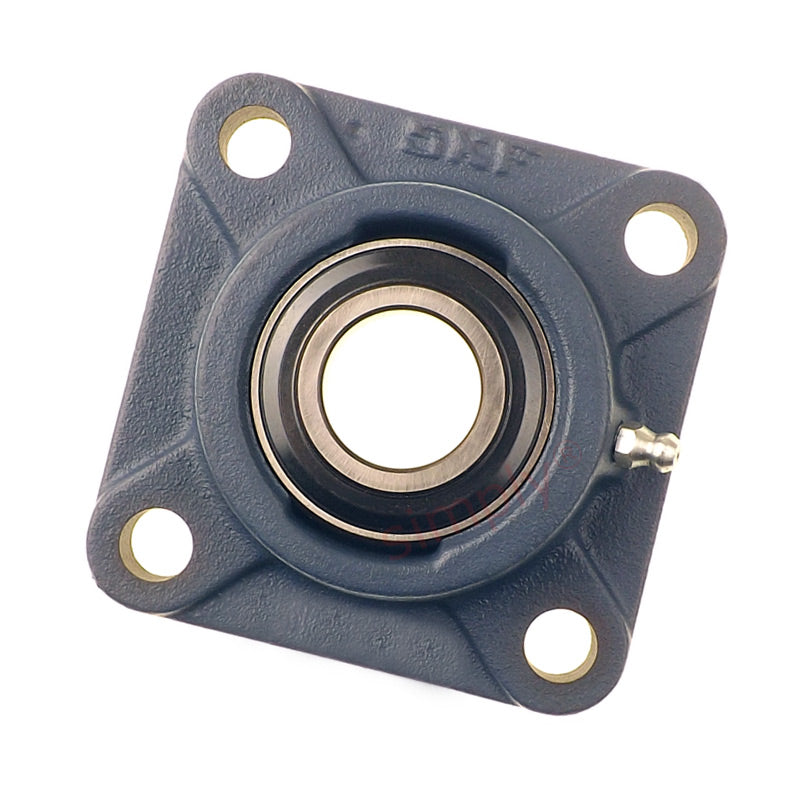

SKF FY40TR Square Cast Housing with Grub Screw 40mm Insert
SKF FY40TR Square Cast Housing with Grub Screw 40mm Insert
Regular price
$110.23
ex VAT
Regular price
Sale price
$110.23
ex VAT
In stock
Price Break
10+
$73.83
20+
$69.68
30+
$68.85
40+
$68.02
50+
$67.20
75+
$66.37
100+
$62.22
200+
$61.39
250+
$60.56
500+
$59.73
1000+
$58.07
Quantity
Couldn't load pickup availability
Description
Description
|
SKF Square Flanged Y-bearing Units with Cast Housing: These units have a square flange and four holes for attachment bolts. A grease fitting in the housing allows the unit to be re-lubricated. This makes them especially suitable for bearing arrangements that operate under high levels of contamination, high speeds, high temperatures or relatively heavy loads. Benefits: Grease fitting allows re-lubrication |
- Brand / Quality:
- SKF - High Quality
- Inside Diameter:
- 40mm
- Style:
- FY
- Bolt Hole Centres:
- 101.5mm
Technical
Technical
| d | 40mm |
|---|---|
| A1 | 38.5mm |
| A2 | 14mm |
| B | 49.2mm |
| Da | 115.9mm |
| J | 101.5mm |
| L | 130mm |
| N | 14mm |
| G | 12mm |
| s1 | 30.2mm |
| T | 54.2mm |
| Static load Cr | 19 kN |
| Dynamic load Cor | 30.7 kN |
| Fatigue load limit Pu | 0.8 kN |
| Limiting speed | 2800 rpm |
| A5 | 23.5mm |
| Weight | 1.9 kg |
| Compatible end cover closed | ECY208 |
