SKF FY45TF Square Cast Housing with Grub Screw 45mm Insert
SKF FY45TF Square Cast Housing with Grub Screw 45mm Insert
Regular price
$104.52
ex VAT
Regular price
Sale price
$104.52
ex VAT
In stock
Price Break
10+
$70.00
20+
$66.07
30+
$65.29
40+
$64.50
50+
$63.71
75+
$62.93
100+
$58.99
200+
$58.21
250+
$57.42
500+
$56.63
1000+
$55.06
Quantity
Couldn't load pickup availability
Description
Description
|
SKF Square Flanged Y-bearing Units with Cast Housing: These units have a square flange and four holes for attachment bolts. A grease fitting in the housing allows the unit to be re-lubricated. This makes them especially suitable for bearing arrangements that operate under high levels of contamination, high speeds, high temperatures or relatively heavy loads. Benefits: Grease fitting allows re-lubrication |
- Brand / Quality:
- SKF - High Quality
- Inside Diameter:
- 45mm
- Style:
- FY
- Bolt Hole Centres:
- 105mm

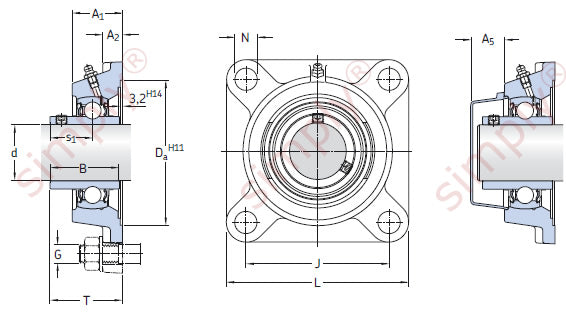

Technical
Technical
| d | 45mm |
|---|---|
| A1 | 39mm |
| A2 | 14mm |
| B | 49.2mm |
| Da | 119.1mm |
| J | 105mm |
| L | 137mm |
| N | 16mm |
| G | 14mm |
| s1 | 30.2mm |
| T | 54.2mm |
| Static load Cr | 21.6 kN |
| Dynamic load Cor | 33.2 kN |
| Fatigue load limit Pu | 0.915 kN |
| Limiting speed | 4300 rpm |
| A5 | 23mm |
| Weight | 2.1 kg |
| Compatible end cover closed | ECY209 |
