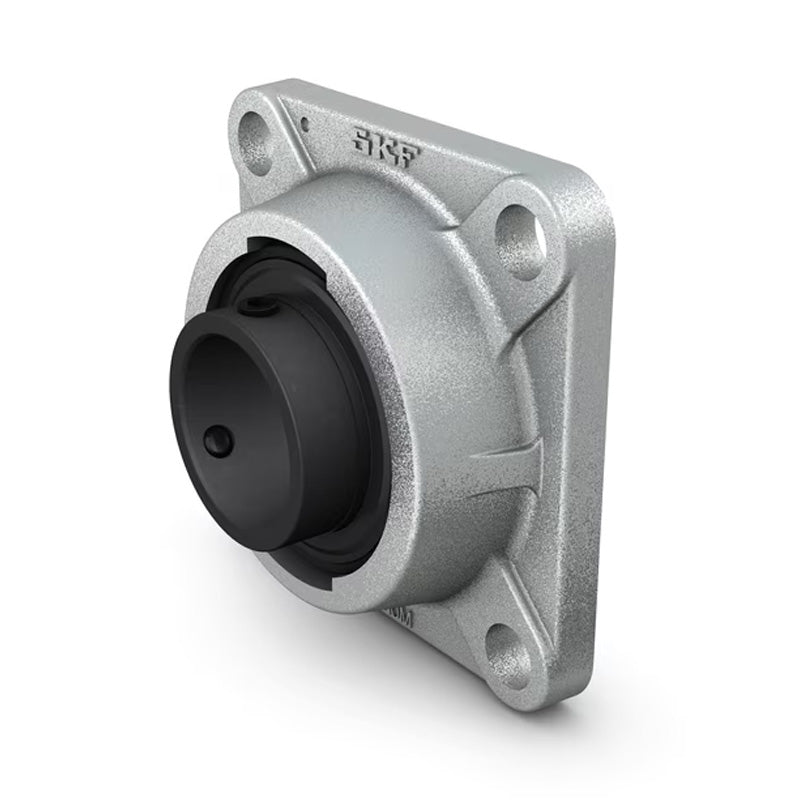

• SKF FY45TFVA201 Y Bearing Four Bolt Square High Temperature Flange Unit Housing with Steel Cage Insert for Metric Shaft 45mm
1 1

SKU: FY45TF/VA201-SKF

SKF FY45TFVA201 Y Bearing Four Bolt Square High Temperature Flange Unit Housing with Steel Cage Insert for Metric Shaft 45mm

SKF FY45TFVA201 Y Bearing Four Bolt Square High Temperature Flange Unit Housing with Steel Cage Insert for Metric Shaft 45mm
$357.37 ex VAT
$357.37 ex VAT
Sale Sold out

In stock

Price Break
10+ $239.38
19+ $225.93
29+ $223.24
39+ $220.55
49+ $217.86
74+ $215.17
99+ $201.72
199+ $199.03
249+ $196.34
499+ $193.65
999+ $188.28

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
SKF High Temperature Housings and Bearing Inserts: VA201 have a grey cast iron housing and have steel cages, they are lubricated with a polyalkylene glycol/graphite mixture and can be used at temperatures from -40 deg to +250 deg Celsius, at prolonged use over 200 deg Celsius dry lubricant pertains. All versions are characterised by their BLACK PHOSPHATED COATING on the inserts.They have a max rotational speed of 100 rpm
Benefits:High temp tolerance from -40 to +250 deg Celsius
Brand / Quality:
SKF - High Quality
Inside Diameter:
45mm
Temperature Range:
High Temp
Technical
d 45mm
A1 39mm
A2 14mm
B 49.2mm
J 105mm
L 137mm
N 15.9mm
G 14mm
T 54.2mm
Dynamic load C 33.2 kN
Static load Co 21.6 kN
Weight 2.1 kg
