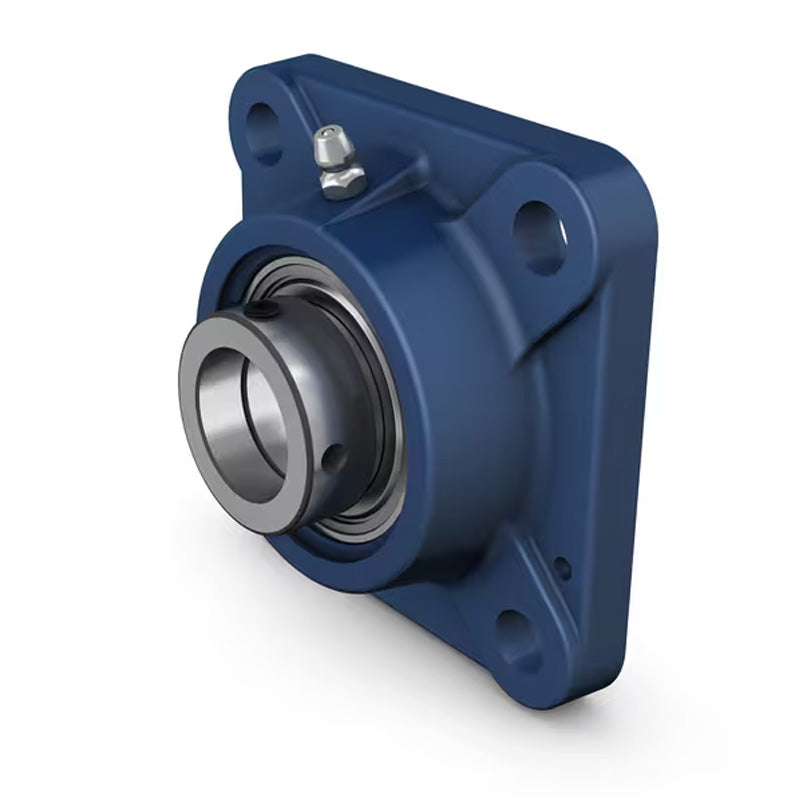

SKF FY5/8FM Square Cast Housing with Eccentric Collar 5/8 inch Insert
SKF FY5/8FM Square Cast Housing with Eccentric Collar 5/8 inch Insert
Out of stock
Description
Description
|
SKF Square Flanged Y-bearing Units with Cast Housing and Locking Collar: These units have a square flange and four holes for attachment bolts. A grease fitting in the housing allows the unit to be re-lubricated. This makes them especially suitable for bearing arrangements that operate under high levels of contamination, high speeds, high temperatures or relatively heavy loads. Benefits: Grease fitting allows re-lubrication |
- Brand / Quality:
- SKF - High Quality
- Inside Diameter:
- 15.88mm = 0.625 (5/8) inch
- Style:
- FY
- Bolt Hole Centres:
- 54mm
Technical
Technical
| d | 5/8 inch |
|---|---|
| A1 | 23.4mm |
| A2 | 9.9mm |
| B1 | 28.6mm |
| J | 54mm |
| L | 76.2mm |
| G | 10mm |
| s1 | 22.3mm |
| T | 36.8mm |
| Static load Cr | 4.75 kN |
| Dynamic load Cor | 9.56 kN |
| Fatigue load limit | 0.2 kN |
| Limiting speed | 9500 rpm |
| Weight | 0.47 kg |
| Housing | Insert |
