• SKF FY50TFVA228 Y Bearing Four Bolt Square High Temperature Flange Unit Housing with Graphite Cage Insert for Metric Shaft 50mm
1 1

SKU: FY50TF/VA228-SKF

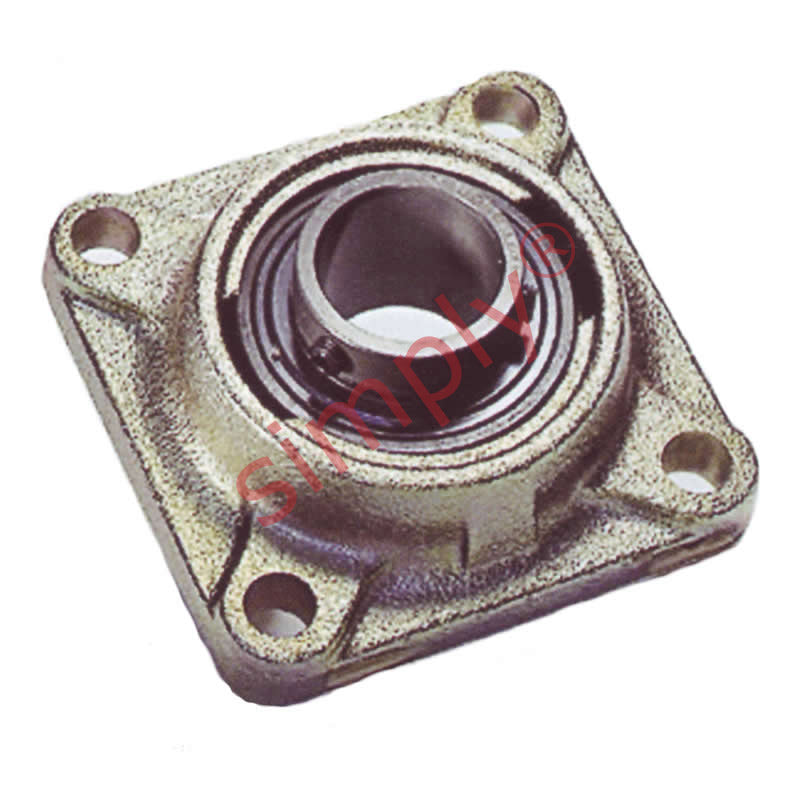

SKF FY50TFVA228 Y Bearing Four Bolt Square High Temperature Flange Unit Housing with Graphite Cage Insert for Metric Shaft 50mm

SKF FY50TFVA228 Y Bearing Four Bolt Square High Temperature Flange Unit Housing with Graphite Cage Insert for Metric Shaft 50mm
$425.83 ex VAT
$425.83 ex VAT
Sale Sold out

In stock

Price Break
10+ $285.23
19+ $269.21
29+ $266.00
39+ $262.80
49+ $259.60
74+ $256.39
99+ $240.37
199+ $237.16
249+ $233.96
499+ $230.75
999+ $224.34

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
SKF High Temperature Housings and Bearing Inserts: VA228 have a grey cast iron housing and have a coronet type graphite cages, they are lubricated with a polyalkylene glycol/graphite mixture and can be used at temperatures from -50 deg to +350 deg Celsius, at prolonged use over 200 deg Celsius dry lubricant pertains. All versions are characterised by their BLACK PHOSPHATED COATING on the inserts. They have a max rotational speed of 100 rpm
Benefits:High temp tolerance from -50 to +350 deg Celsius
Brand / Quality:
SKF - High Quality
Inside Diameter:
50mm
Temperature Range:
High Temp
Technical
d 50mm
A1 43mm
A2 15mm
B 51.6mm
J 111mm
L 143mm
N 15.9mm
G 14mm
T 60.6mm
Dynamic load C 35.1 kN
Static load Co 23.2 kN
Weight 2.49 kg
