SKU: FY50TR-SKF

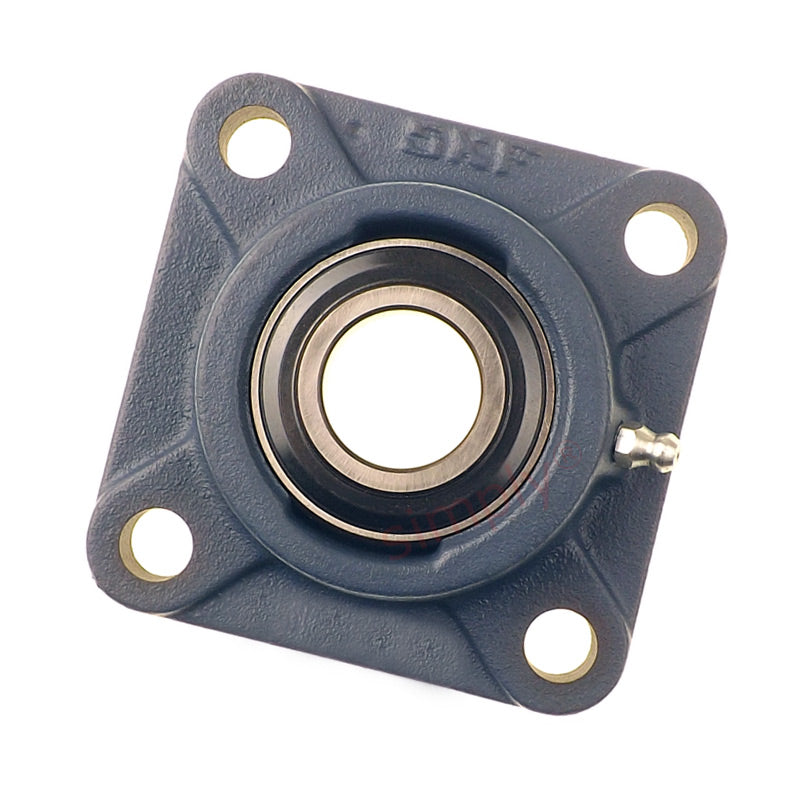

SKF FY50TR Square Cast Housing with Grub Screw 50mm Insert
SKF FY50TR Square Cast Housing with Grub Screw 50mm Insert
Regular price
$151.71
ex VAT
Regular price
Sale price
$151.71
ex VAT
In stock
Price Break
10+
$101.62
20+
$95.91
30+
$94.77
40+
$93.63
50+
$92.48
75+
$91.34
100+
$85.63
200+
$84.49
250+
$83.35
500+
$82.21
1000+
$79.93
Quantity
Couldn't load pickup availability
Description
Description
|
SKF Square Flanged Y-bearing Units with Cast Housing: These units have a square flange and four holes for attachment bolts. A grease fitting in the housing allows the unit to be re-lubricated. This makes them especially suitable for bearing arrangements that operate under high levels of contamination, high speeds, high temperatures or relatively heavy loads. Benefits: Grease fitting allows re-lubrication |
- Brand / Quality:
- SKF - High Quality
- Inside Diameter:
- 50mm
- Style:
- FY
- Bolt Hole Centres:
- 111mm
Technical
Technical
| d | 50mm |
|---|---|
| A1 | 43mm |
| A2 | 15mm |
| B | 51.6mm |
| Da | 125.4mm |
| J | 111mm |
| L | 143mm |
| N | 18mm |
| G | 16mm |
| s1 | 32.6mm |
| T | 60.6mm |
| Static load Cr | 23.2 kN |
| Dynamic load Cor | 35.1 kN |
| Fatigue load limit Pu | 0.98 kN |
| Limiting speed | 2200 rpm |
| A5 | 29.5mm |
| Weight | 2.5 kg |
| Compatible end cover closed | ECY210 |
