SKU: FY55FM-SKF
SKF FY55FM Square Cast Housing with Eccentric Locking Collar 55mm Insert
SKF FY55FM Square Cast Housing with Eccentric Locking Collar 55mm Insert
Regular price
$170.68
ex VAT
Regular price
Sale price
$170.68
ex VAT
In stock
Price Break
10+
$114.33
20+
$107.90
30+
$106.62
40+
$105.34
50+
$104.05
75+
$102.77
100+
$96.34
200+
$95.06
250+
$93.77
500+
$92.49
1000+
$89.92
Quantity
Couldn't load pickup availability
Description
Description
|
SKF Square Flanged Y-bearing Units with Cast Housing and Locking Collar: These units have a square flange and four holes for attachment bolts. A grease fitting in the housing allows the unit to be re-lubricated. This makes them especially suitable for bearing arrangements that operate under high levels of contamination, high speeds, high temperatures or relatively heavy loads. Benefits: Grease fitting allows re-lubrication |
- Brand / Quality:
- SKF - High Quality
- Inside Diameter:
- 55mm
- Style:
- FY
- Bolt Hole Centres:
- 130mm

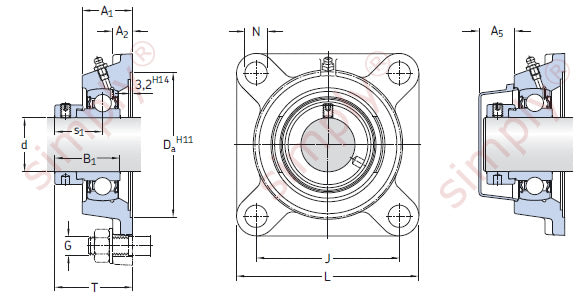

Technical
Technical
| d | 55mm |
|---|---|
| A1 | 47.5mm |
| A2 | 16mm |
| B1 | 48.4mm |
| Da | 150.8mm |
| J | 130mm |
| L | 162mm |
| N | 18mm |
| G | 16mm |
| s1 | 36.4mm |
| T | 67.4mm |
| Static load Cr | 29 kN |
| Dynamic load Cor | 43.6 kN |
| Fatigue load limit Pu | 1.25 kN |
| Limiting speed | 3600 rpm |
| A5 | 34mm |
| Weight | 3.6 kg |
| Compatible end cover closed | ECY211 |
