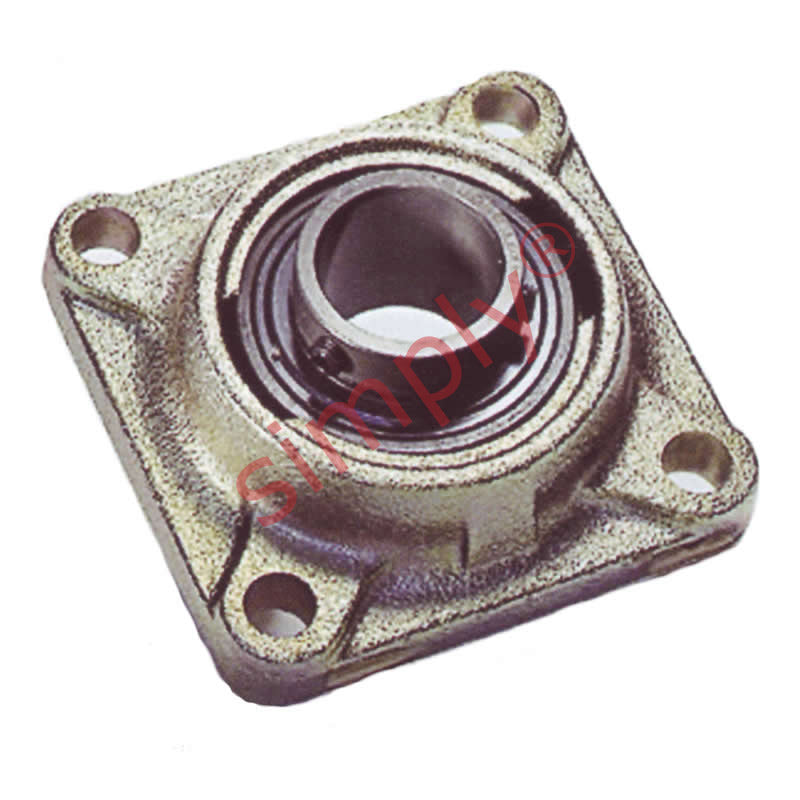

• SKF FY55TFVA228 Y Bearing Four Bolt Square High Temperature Flange Unit Housing with Graphite Cage Insert for Metric Shaft 55mm
1 1

SKU: FY55TF/VA228-SKF

SKF FY55TFVA228 Y Bearing Four Bolt Square High Temperature Flange Unit Housing with Graphite Cage Insert for Metric Shaft 55mm

SKF FY55TFVA228 Y Bearing Four Bolt Square High Temperature Flange Unit Housing with Graphite Cage Insert for Metric Shaft 55mm
$533.54 ex VAT
$533.54 ex VAT
Sale Sold out

In stock

Price Break
10+ $357.38
19+ $337.30
29+ $333.28
39+ $329.27
49+ $325.25
74+ $321.24
99+ $301.16
199+ $297.14
249+ $293.13
499+ $289.11
999+ $281.08

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
SKF High Temperature Housings and Bearing Inserts: VA228 have a grey cast iron housing and have a coronet type graphite cages, they are lubricated with a polyalkylene glycol/graphite mixture and can be used at temperatures from -50 deg to +350 deg Celsius, at prolonged use over 200 deg Celsius dry lubricant pertains. All versions are characterised by their BLACK PHOSPHATED COATING on the inserts. They have a max rotational speed of 100 rpm
Benefits:High temp tolerance from -50 to +350 deg Celsius
Brand / Quality:
SKF - High Quality
Inside Diameter:
55mm
Temperature Range:
High Temp
Technical
d 55mm
A1 47.5mm
A2 16mm
B 55.6mm
J 130mm
L 162mm
N 19mm
G 16mm
T 64.4mm
Dynamic load C 43.6 kN
Static load Co 29 kN
Weight 3.59 kg
