SKU: FY60TR-SKF

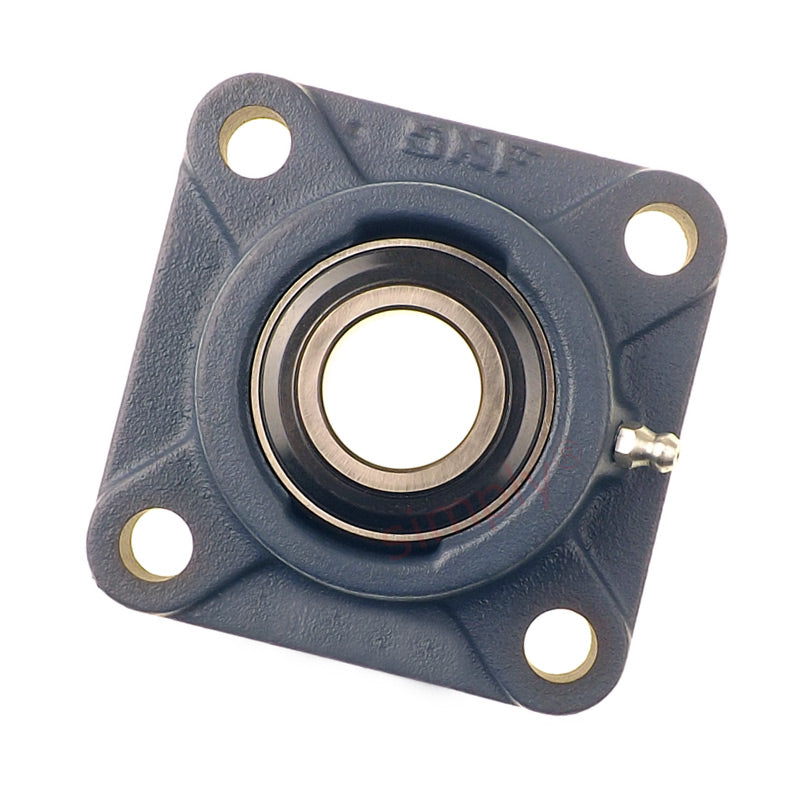

SKF FY60TR Square Cast Housing with Grub Screw 60mm Insert
SKF FY60TR Square Cast Housing with Grub Screw 60mm Insert
Regular price
$251.28
ex VAT
Regular price
Sale price
$251.28
ex VAT
In stock
Price Break
10+
$168.32
20+
$158.86
30+
$156.97
40+
$155.08
50+
$153.19
75+
$151.30
100+
$141.84
200+
$139.95
250+
$138.06
500+
$136.17
1000+
$132.38
Quantity
Couldn't load pickup availability
Description
Description
|
SKF Square Flanged Y-bearing Units with Cast Housing: These units have a square flange and four holes for attachment bolts. A grease fitting in the housing allows the unit to be re-lubricated. This makes them especially suitable for bearing arrangements that operate under high levels of contamination, high speeds, high temperatures or relatively heavy loads. Benefits: Grease fitting allows re-lubrication |
- Brand / Quality:
- SKF - High Quality
- Inside Diameter:
- 60mm
- Style:
- FY
- Bolt Hole Centres:
- 143mm
Technical
Technical
| d | 60mm |
|---|---|
| A1 | 52mm |
| A2 | 17mm |
| B | 65.1mm |
| Da | 161.9mm |
| J | 143mm |
| L | 175mm |
| N | 18mm |
| G | 16mm |
| s1 | 39.7mm |
| T | 73.7mm |
| Static load Cr | 36 kN |
| Dynamic load Cor | 52.7 kN |
| Fatigue load limit Pu | 1.53 kN |
| Limiting speed | 1800 rpm |
| A5 | 35.5mm |
| Weight | 4.6 kg |
| Compatible end cover closed | ECY212 |
