SKU: FYC20TF-SKF

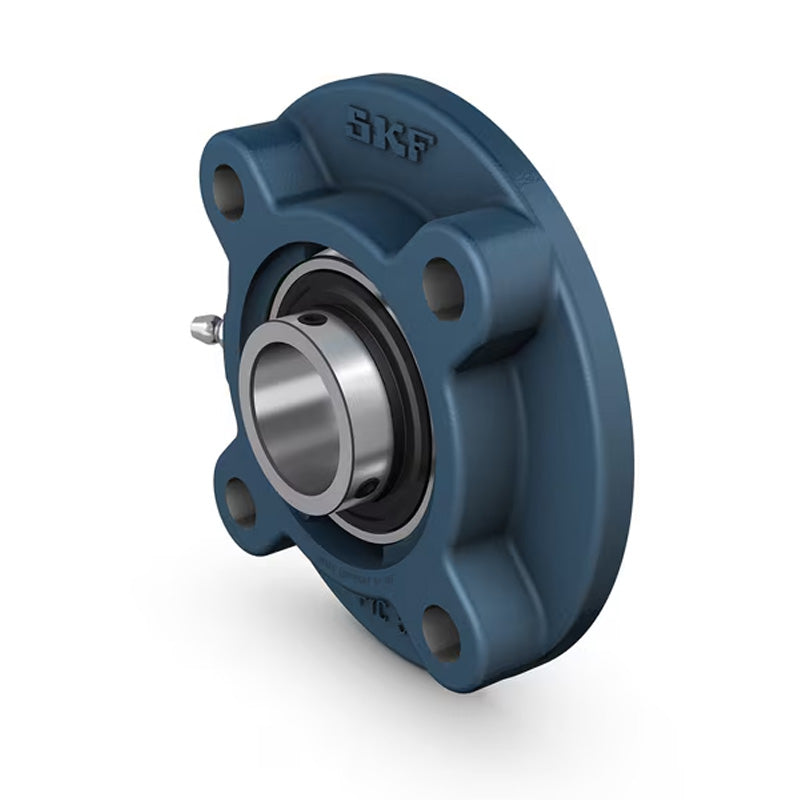

SKF FYC20TF Round Cast Housing with Grub Screw 20mm Insert
SKF FYC20TF Round Cast Housing with Grub Screw 20mm Insert
Regular price
$60.44
ex VAT
Regular price
Sale price
$60.44
ex VAT
In stock
Price Break
10+
$40.49
20+
$38.21
30+
$37.76
40+
$37.30
50+
$36.85
75+
$36.39
100+
$34.12
200+
$33.66
250+
$33.21
500+
$32.75
1000+
$31.84
Quantity
Couldn't load pickup availability
Description
Description
|
SKF Round Flanged Y-bearing Units with Cast Housing: These units have a round flange and four holes for attachment bolts. A grease fitting in the housing allows the unit to be re-lubricated. This makes them especially suitable for bearing arrangements that operate under high levels of contamination, high speeds, high temperatures or relatively heavy loads. Benefits: Grease fitting allows re-lubrication |
- Brand / Quality:
- SKF - High Quality
- Inside Diameter:
- 20mm
- Style:
- FYC
- Pitch Circle Diameter:
- 78mm
Technical
Technical
| d | 20mm |
|---|---|
| A1 | 25.5mm |
| A2 | 7mm |
| A3 | 5mm |
| B | 31mm |
| Da h8 | 62mm |
| J | 78mm |
| J1 | 55.2mm |
| L | 100mm |
| N | 12mm |
| G | 10mm |
| s1 | 18.3mm |
| T | 28.3mm |
| Static load Cr | 6.55 kN |
| Dynamic load Cor | 12.7 kN |
| Fatigue load limit Pu | 0.28 kN |
| Limiting speed | 8500 rpm |
| Weight | 0.7 kg |
