SKU: FYC25TF-SKF

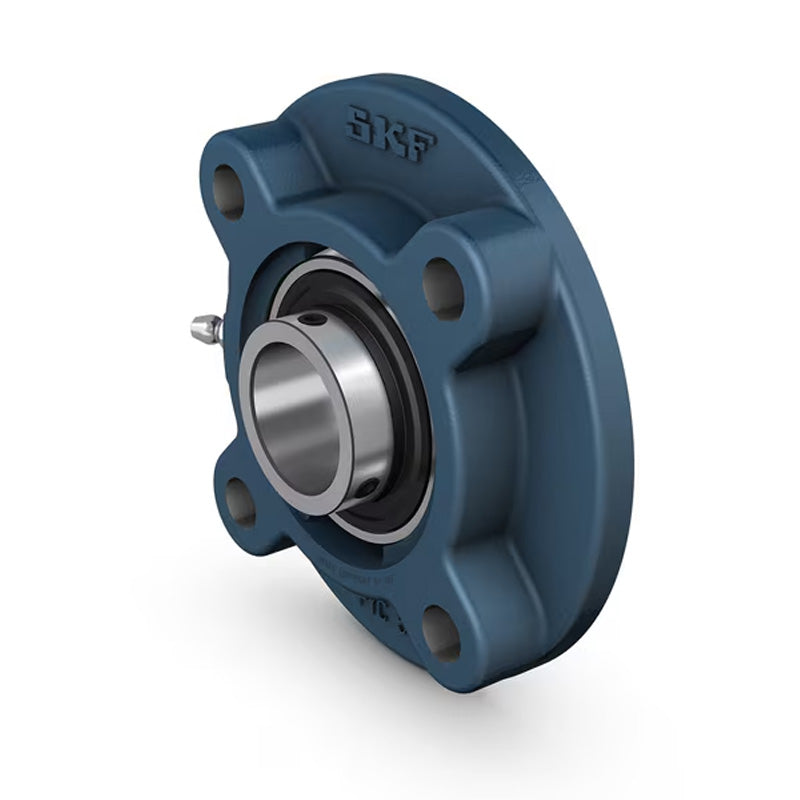

SKF FYC25TF Round Cast Housing with Grub Screw 25mm Insert
SKF FYC25TF Round Cast Housing with Grub Screw 25mm Insert
Regular price
$72.92
ex VAT
Regular price
Sale price
$72.92
ex VAT
In stock
Price Break
10+
$48.84
20+
$46.10
30+
$45.55
40+
$45.00
50+
$44.45
75+
$43.90
100+
$41.16
200+
$40.61
250+
$40.06
500+
$39.51
1000+
$38.42
Quantity
Couldn't load pickup availability
Description
Description
|
SKF Round Flanged Y-bearing Units with Cast Housing: These units have a round flange and four holes for attachment bolts. A grease fitting in the housing allows the unit to be re-lubricated. This makes them especially suitable for bearing arrangements that operate under high levels of contamination, high speeds, high temperatures or relatively heavy loads. Benefits: Grease fitting allows re-lubrication |
- Brand / Quality:
- SKF - High Quality
- Inside Diameter:
- 25mm
- Style:
- FYC
- Pitch Circle Diameter:
- 90mm
Technical
Technical
| d | 25mm |
|---|---|
| A1 | 27mm |
| A2 | 7mm |
| A3 | 6mm |
| B | 34.1mm |
| Da h8 | 70mm |
| J | 90mm |
| J1 | 63.6mm |
| L | 115mm |
| N | 12mm |
| G | 10mm |
| s1 | 19.8mm |
| T | 29.8mm |
| Static load Cr | 7.8 kN |
| Dynamic load Cor | 14 kN |
| Fatigue load limit Pu | 0.335 kN |
| Limiting speed | 7000 rpm |
| Weight | 0.93 kg |
