SKU: FYC30TF-SKF

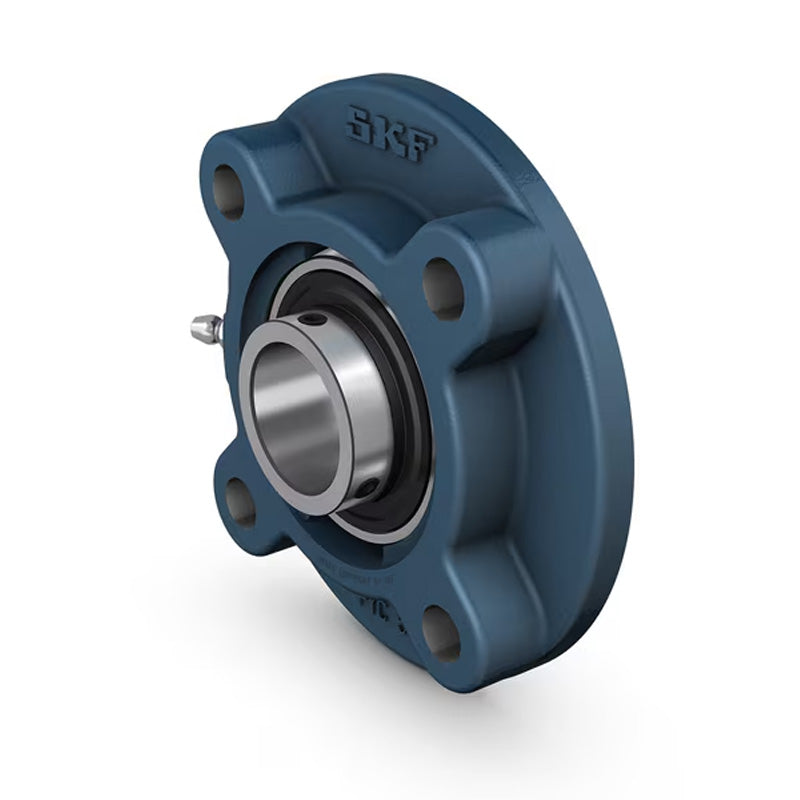

SKF FYC30TF Round Cast Housing with Grub Screw 30mm Insert
SKF FYC30TF Round Cast Housing with Grub Screw 30mm Insert
Regular price
$83.88
ex VAT
Regular price
Sale price
$83.88
ex VAT
In stock
Price Break
10+
$56.18
20+
$53.03
30+
$52.39
40+
$51.76
50+
$51.13
75+
$50.50
100+
$47.34
200+
$46.71
250+
$46.08
500+
$45.45
1000+
$44.19
Quantity
Couldn't load pickup availability
Description
Description
|
SKF Round Flanged Y-bearing Units with Cast Housing: These units have a round flange and four holes for attachment bolts. A grease fitting in the housing allows the unit to be re-lubricated. This makes them especially suitable for bearing arrangements that operate under high levels of contamination, high speeds, high temperatures or relatively heavy loads. Benefits: Grease fitting allows re-lubrication |
- Brand / Quality:
- SKF - High Quality
- Inside Diameter:
- 30mm
- Style:
- FYC
- Pitch Circle Diameter:
- 100mm

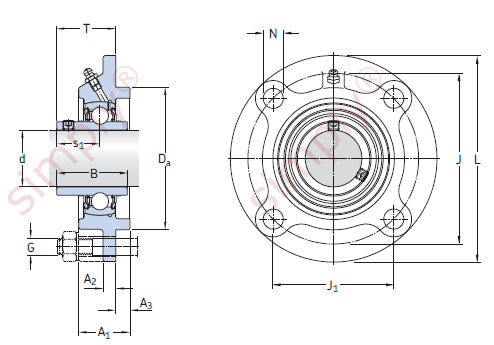

Technical
Technical
| d | 30mm |
|---|---|
| A1 | 31mm |
| A2 | 8mm |
| A3 | 8mm |
| B | 38.1mm |
| Da h8 | 80mm |
| J | 100mm |
| J1 | 70.7mm |
| L | 125mm |
| N | 12mm |
| G | 10mm |
| s1 | 22.2mm |
| T | 32.2mm |
| Static load Cr | 11.2 kN |
| Dynamic load Cor | 19.5 kN |
| Fatigue load limit Pu | 0.475 kN |
| Limiting speed | 6300 rpm |
| Weight | 1.35 kg |
