SKU: FYC45TF-SKF

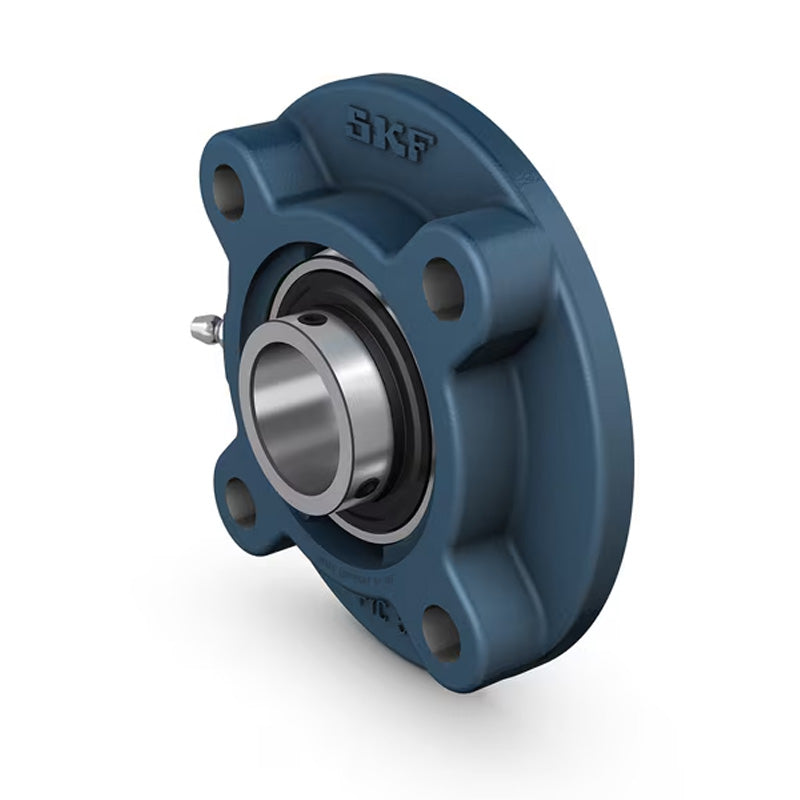

SKF FYC45TF Round Cast Housing with Grub Screw 45mm Insert
SKF FYC45TF Round Cast Housing with Grub Screw 45mm Insert
Regular price
$136.90
ex VAT
Regular price
Sale price
$136.90
ex VAT
In stock
Price Break
10+
$91.70
20+
$86.55
30+
$85.52
40+
$84.49
50+
$83.46
75+
$82.43
100+
$77.27
200+
$76.24
250+
$75.21
500+
$74.18
1000+
$72.12
Quantity
Couldn't load pickup availability
Description
Description
|
SKF Round Flanged Y-bearing Units with Cast Housing: These units have a round flange and four holes for attachment bolts. A grease fitting in the housing allows the unit to be re-lubricated. This makes them especially suitable for bearing arrangements that operate under high levels of contamination, high speeds, high temperatures or relatively heavy loads. Benefits: Grease fitting allows re-lubrication |
- Brand / Quality:
- SKF - High Quality
- Inside Diameter:
- 45mm
- Style:
- FYC
- Pitch Circle Diameter:
- 132mm
Technical
Technical
| d | 45mm |
|---|---|
| A1 | 38mm |
| A2 | 14mm |
| A3 | 12mm |
| B | 49.2mm |
| Da h8 | 105mm |
| J | 132mm |
| J1 | 93.3mm |
| L | 160mm |
| N | 18mm |
| G | 14mm |
| s1 | 30.2mm |
| T | 40.2mm |
| Static load Cr | 21.6 kN |
| Dynamic load Cor | 33.2 kN |
| Fatigue load limit Pu | 0.915 kN |
| Limiting speed | 4300 rpm |
| Weight | 2.65 kg |
