SKU: FYC60TF-SKF

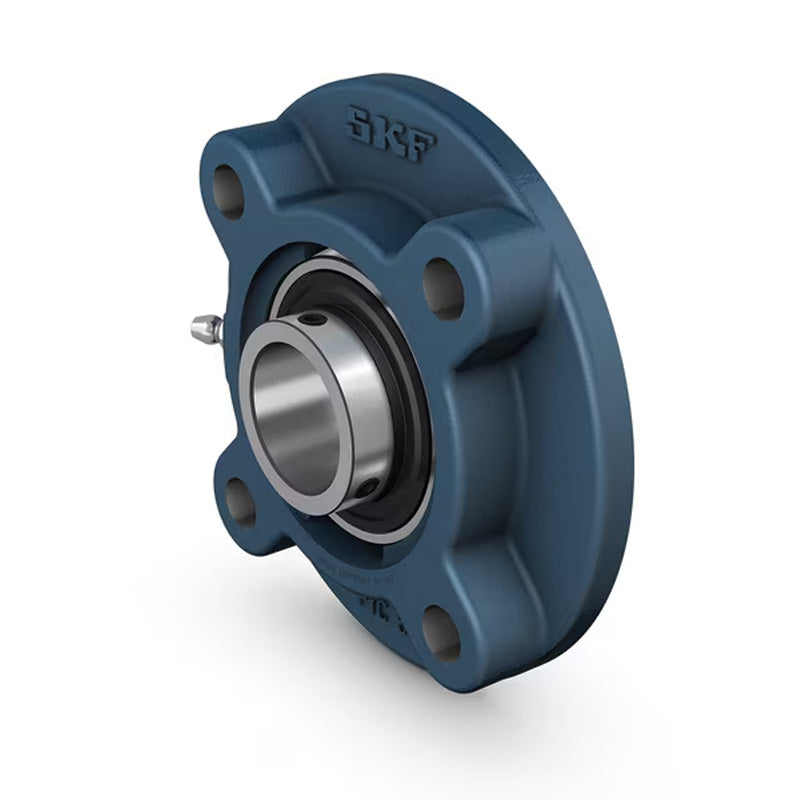

SKF FYC60TF Round Cast Housing with Grub Screw 60mm Insert
SKF FYC60TF Round Cast Housing with Grub Screw 60mm Insert
Regular price
$221.29
ex VAT
Regular price
Sale price
$221.29
ex VAT
In stock
Price Break
10+
$148.23
20+
$139.90
30+
$138.23
40+
$136.57
50+
$134.90
75+
$133.24
100+
$124.91
200+
$123.25
250+
$121.58
500+
$119.91
1000+
$116.58
Quantity
Couldn't load pickup availability
Description
Description
|
SKF Round Flanged Y-bearing Units with Cast Housing: These units have a round flange and four holes for attachment bolts. A grease fitting in the housing allows the unit to be re-lubricated. This makes them especially suitable for bearing arrangements that operate under high levels of contamination, high speeds, high temperatures or relatively heavy loads. Benefits: Grease fitting allows re-lubrication |
- Brand / Quality:
- SKF - High Quality
- Inside Diameter:
- 60mm
- Style:
- FYC
- Pitch Circle Diameter:
- 160mm
Technical
Technical
| d | 60mm |
|---|---|
| A1 | 48mm |
| A2 | 15mm |
| A3 | 12mm |
| B | 65.1mm |
| Da h8 | 135mm |
| J | 160mm |
| J1 | 113.1mm |
| L | 195mm |
| N | 19mm |
| G | 16mm |
| s1 | 39.7mm |
| T | 56.7mm |
| Static load Cr | 36 kN |
| Dynamic load Cor | 52.7 kN |
| Fatigue load limit Pu | 1.53 kN |
| Limiting speed | 3400 rpm |
| Weight | 4.9 kg |
