SKU: FYJ25KF-SKF

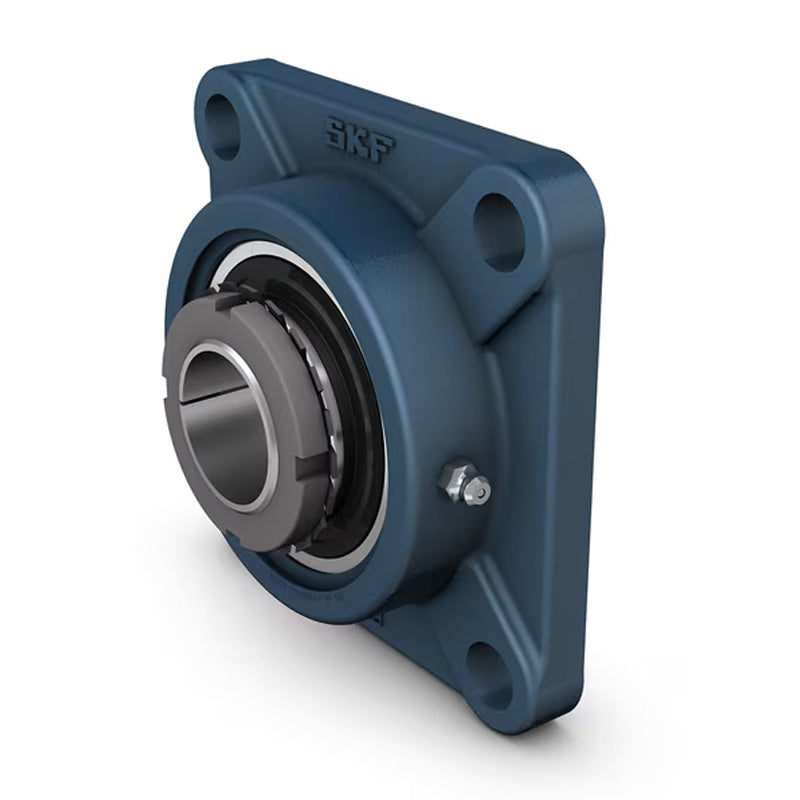

SKF FYJ25KF Flanged Unit with a Square Cast Housing with 20mm Insert
SKF FYJ25KF Flanged Unit with a Square Cast Housing with 20mm Insert
Regular price
$65.12
ex VAT
Regular price
Sale price
$65.12
ex VAT
In stock
Price Break
10+
$43.62
20+
$41.17
30+
$40.68
40+
$40.19
50+
$39.70
75+
$39.21
100+
$36.76
200+
$36.27
250+
$35.78
500+
$35.29
1000+
$34.31
Quantity
Couldn't load pickup availability
Description
Description
|
SKF Square Flanged Y-bearing Units: These units have a square flange and four holes for attachment bolts. A grease fitting in the housing allows the unit to be re-lubricated. This makes them especially suitable for bearing arrangements that operate under high levels of contamination, high speeds, high temperatures or relatively heavy loads. Note: The appropriate adapter sleeve is not part of the bearing and must be ordered separately. Benefits: Grease fitting allows re-lubrication |
- Brand / Quality:
- SKF - High Quality
- Inside Diameter:
- 20mm
- Style:
- FYJ
- Bolt Hole Centres:
- 70mm
Technical
Technical
| d | 20mm |
|---|---|
| A1 | 27mm |
| A2 | 12mm |
| B1 | 35mm |
| Da | 74.6mm |
| J | 70mm |
| L | 95mm |
| N | 12mm |
| G | 10mm |
| s1 | 20mm |
| T | 36mm |
| Static load Cr | 7.8 kN |
| Dynamic load Cor | 14 kN |
| Fatigue load limit Pu | 0.335 kN |
| Limiting speed | 7000 rpm |
| Weight | 0.73 kg |
